Picture Graph code Name U8 code SKU Price: Qty:

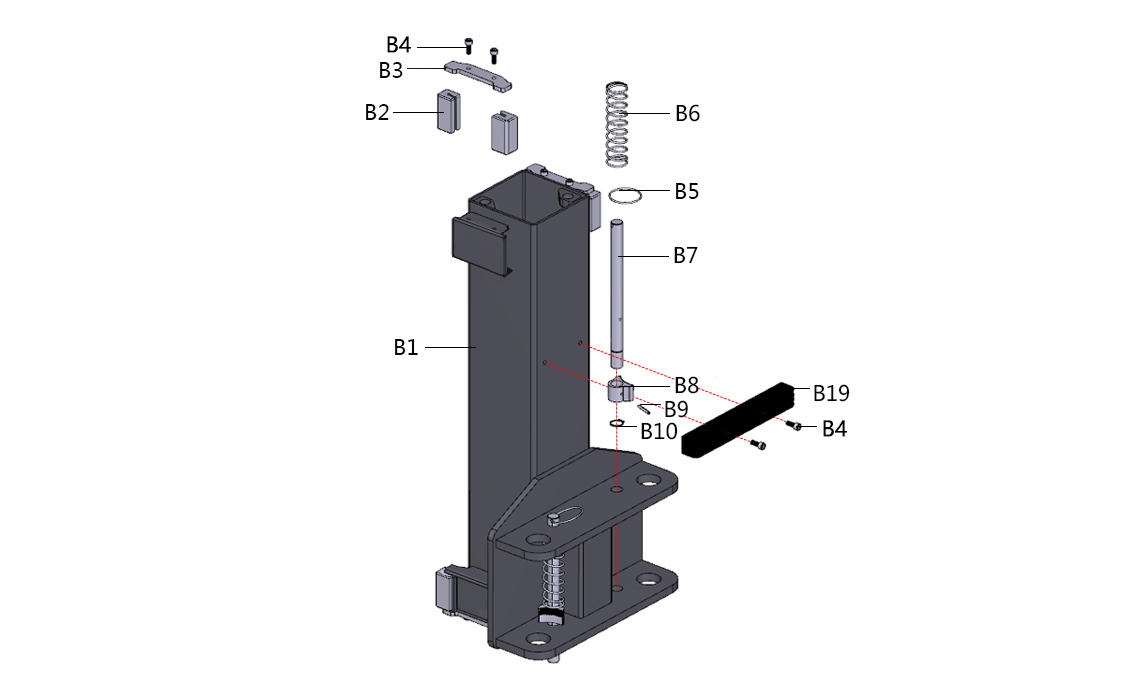

B1 Complete carriage assembly TZ-40E-030000-0 JZ20101100001
- +
B4 hex socket head cap screw B-010-080161-0 FJ22009000120
- +
B5 Key ring B-056-025601-0 FJ54001000005
- +
B6 Locking axes spring TG-TEH-000900-0 JZ11700400019
- +
B7 Locking shaft TX-40E-000700-0 JZ10300100345
- +
B9 Pin B-071-005035-0,B-071-005035-0 FJ26002000006
- +
B19 protection rubber pad S-420-285035-0 JZ12100800018
- +
B8 semi-circle block（small） JZ11601100006
- +
B2 slider TG-40G-000100-0 JZ12100200050
- +
B3 Slider press plate TX-4SB-001100-0 JZ10100500224
- +
B10 Snap Ring B-055-220001-0 FJ14004000011
- +
