Picture Graph code Name U8 code SKU Price: Qty:
C6 Arm guardrail component TZ-40E-090000-0 JZ20103900032
- +

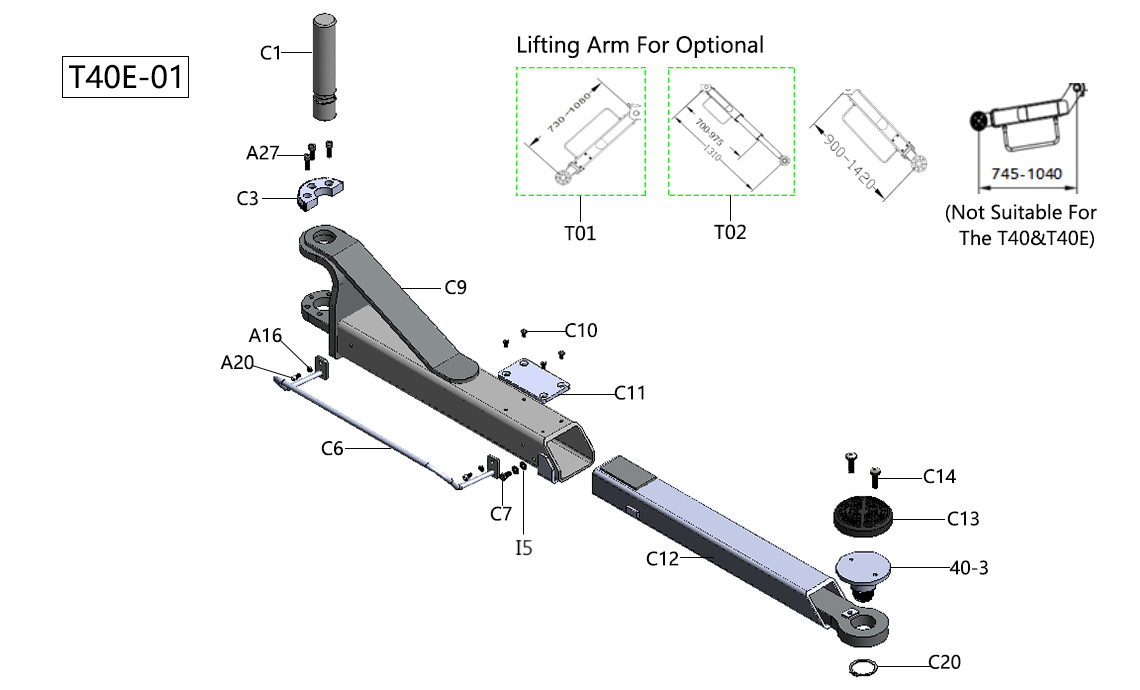

T40E-01 Complete lifting arm-T40E JZ30100700203
- +
I5 Flat washer B-040-091616-1 FJ15006000105
- +
A16 Flat washer B-040-061216-1 FJ15006000092
- +
A20 hex socket head cap screw GZBLS-B-011-060120-1,B-010-06012 FJ22009000087
- +
A27 hex socket head cap screw B-010-100251-0,B-010-100251-0 FJ22009000007
- +
C12 Inside lifting arm assembly JZ20101200059
- +
C1 locking shaft JZ11601400022
- +
C7 Outer hex bolt B-014-080161-1 FJ22012000094
- +
C9 Outside lifting arm assembly JZ20101200210
- +
C14 Round rubber pads S-013-107000-1 JZ12100800006
- +
C11 rubber pad for arm head TG-40E-001600-0 JZ12100800041
- +
C13 screw B-010-080121-1 FJ19012000018
- +
C10 screw B-017-060121-0 FJ19016000034
- +
C3 Semi-circle block（big） JZ11601100005
- +
C20 Snap Ring B-055-500002-0,B-055-500001-0 FJ14004000020
- +
40-3 Three section tray S-013-107000-0 JZ30100200002
- +
