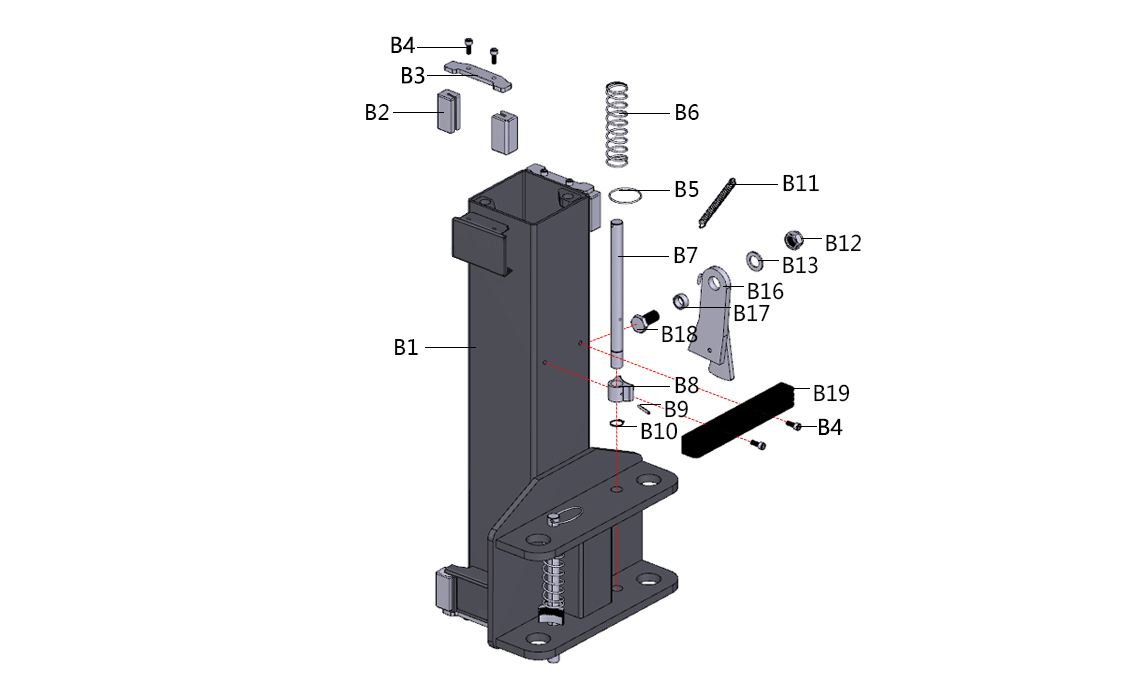

Picture Graph code Name U8 code SKU Price: Qty:
B13 Flat washer B-040-223730-1,GZBLS-B-040-20370 FJ15006000052
- +
B17 guide bushing TX-T40-000100-0 JZ10400100517
- +
B4 hex socket head cap screw B-010-080161-0 FJ22009000120
- +
B18 hex socket head cap screw B-010-200401-0 FJ22012000001
- +
B16 Insurance device TG-T40-040000-0 JZ20101600125
- +
B5 Key ring B-056-025601-0 FJ54001000005
- +
B6 Locking axes spring TG-TEH-000900-0 JZ11700400019
- +
B7 Locking shaft TX-40E-000700-0 JZ10300100345
- +
B12 Nut B-004-200001-2,B-001-200001-0 FJ21003000006
- +
B9 Pin B-071-005035-0,B-071-005035-0 FJ26002000006
- +
B19 protection rubber pad S-420-285035-0 JZ12100800018
- +
B8 semi-circle block（small） JZ11601100006
- +
B2 slider TG-40G-000100-0 JZ12100200050
- +
B3 Slider press plate TX-4SB-001100-0 JZ10100500224
- +
B1 Sliding track assembly TZ-T40-030000-Z JZ20101100005
- +
B10 Snap Ring B-055-220001-0 FJ14004000011
- +
B11 Tension spring JZ11700200007
- +
