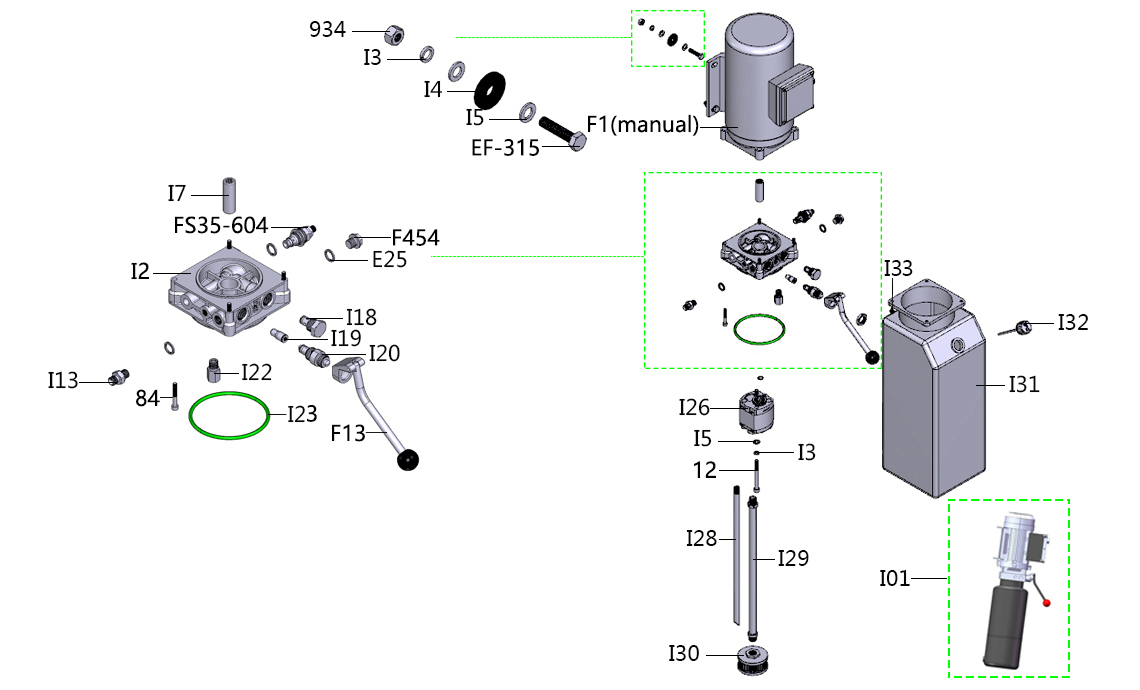

Picture Graph code Name U8 code SKU Price: Qty:
I26 Gear pump S-048-000032-G EQ01002000005
- +
I31 oil tank 8L S-016-080000-0 EQ01010000003
- +
I32 oil tank cover S-304-030200-0 EQ01025000001
- +

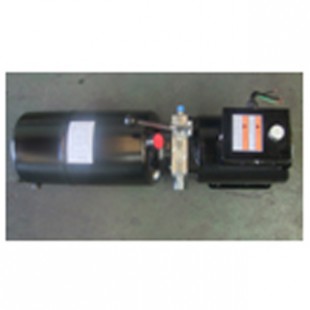

I01( optional) power unit S-058-220021-3 EQ01001000060
- +
F1(manual)( optional） MOTOR S-048-220601-2 DD01001000114
- +
I23 seal ring FJ29002000370
- +
I28 Oil back hose EQ01008000004
- +
I29 Absorbing oil hose EQ01012000005
- +
F1(manual) MOTOR S-048-380503-1 DD01001000122
- +
E25 Combined seal ring B-042-220001-0,C-000-021006-1 FJ29018000001
- +
934 Nut GZBLS-B-004-080000-0,B-004-08000 FJ21011000024
- +
I2 valve block S-048-000013-G EQ01014000005
- +
I13 Connector S-011-010400-10 EQ08003000023
- +
I7 coupling motor pump S-048-000019-G EQ01004000001
- +
I22 Cushion valve S-048-000020-G EQ01007000001
- +
I5 Flat washer B-040-091616-1 FJ15006000105
- +
I3 Flat washer GZBLS-B-050-080000-0,B-050-08000 FJ15004000020
- +
I33 Grounding Screw B-072-050181-0 FJ22006000001
- +
84 Hex socket head cap screw FJ22008000037
- +
12 hex socket head cap screw FJ22008000021
- +
F13 Manual down handle EQ01036000001
- +
I20 Manual unloading valve S-048-000003-Z EQ01024000001
- +
I30 Oil filter S-048-000010-G EQ01009000001
- +
I18 one way valve S-048-000005-Z EQ02002000016
- +
B14 Outer hex bolt B-014-080351-0 FJ22012000106
- +
FS35-604 overflow valve EQ01028000003
- +
F454 Plug FJ17003000002
- +
I01 power unit S-058-380027-1 EQ01001000061
- +
I4 protection rubber pad S-420-103004-0 JZ12100800005
- +
I19 Throttle valve EQ02005000003
- +
