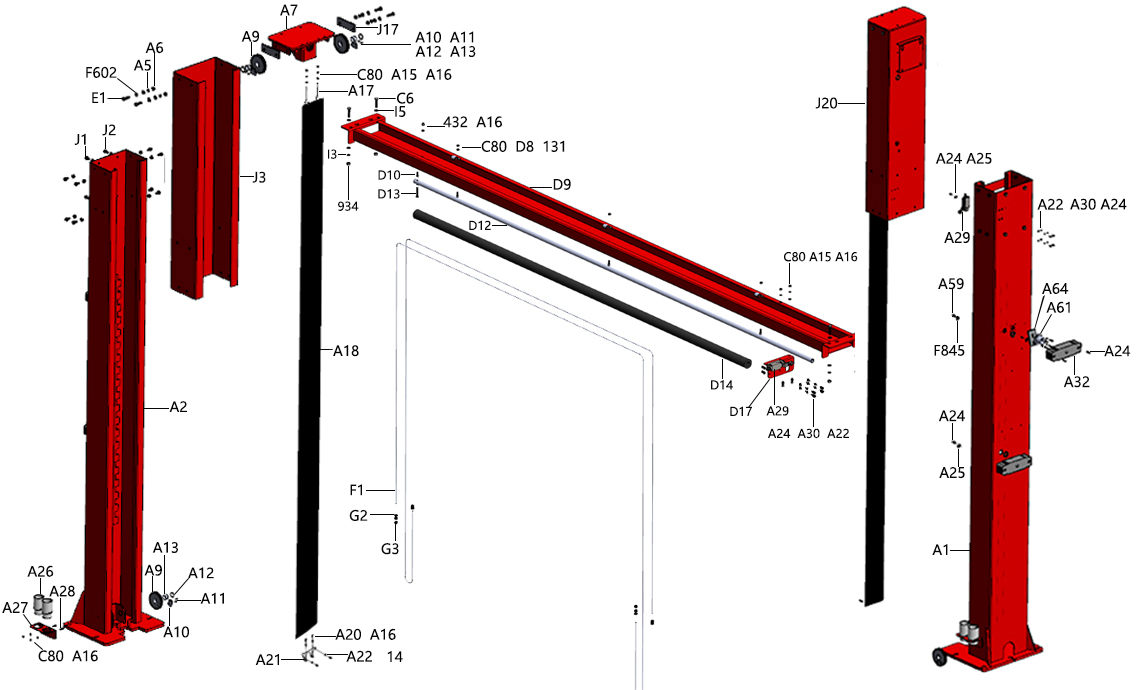

Picture Graph code Name U8 code SKU Price: Qty:
A64 TX-40E-000500-0 JZ10100200765
- +
J20 TZ-4EB-040000-Z JZ20100900040
- +
J17 baffle TZ-4EB-000400-0 JZ10100200786
- +
D9 complete top beam assembly TZ-4EB-030000-Z JZ20101000001
- +
A21 Dust proof cloth fixing plate TZ-40E-002100-0 JZ10200100601
- +
A18 dustcloth S-038-360140-0 JZ30101400002
- +
A17 dustcloth hook S-038-061200-0 FJ39001000002
- +
A61 electromagnet L-070-DC24V0-1 FJ13001000003
- +
A59 fixed plate TX-40E-000600-0 JZ10100500205
- +
I3 Flat washer GZBLS-B-050-080000-0,B-050-08000 FJ15004000020
- +
A30 Flat washer GZBLS-B-050-050000-0,B-050-05000 FJ15004000016
- +
G2 Flat washer B-040-173030-1 FJ15006000041
- +
A5 Flat washer GZBLS-B-050-100000-0,B-050-10000 FJ15004000001
- +
F602 Flat washer B-040-112020-1,B-040-102020-1 FJ15006000006
- +
A16 Flat washer B-040-061216-1 FJ15006000092
- +
I5 Flat washer B-040-091616-1 FJ15006000105
- +
A15 Flat washer GZBLS-B-050-060000-0,B-050-06000 FJ15004000018
- +
A22 Flat washer B-040-051010-1 FJ15006000084
- +
J1 Grounding Screw B-072-100201-0 FJ22023000001
- +
A26 Height increasing column TG-TEH-000070-1 JZ10400100521
- +
A20 hex socket head cap screw GZBLS-B-011-060120-1,B-010-06012 FJ22009000087
- +
131 hex socket head cap screw GZBLS-B-011-060161-0,B-010-06016 FJ22009000093
- +
D13 hex socket head cap screw B-010-060701-0 FJ22011000001
- +
A27 Higher column support JZ10200100098
- +
D14 hose S-030-102020-0 CF01003000007
- +
D10 limit lever position sleeve TX-TEH-000400-0 JZ10800600127
- +
A29 limit switch S-060-008104-1 DD12007000005
- +
D17 limit switch support JZ10200100114
- +
A1 Main column assembly TZ-4EB-010000-Z JZ20100900038
- +
G3 Nut B-004-160001-0 FJ21011000010
- +
A6 Nut GZBLS-B-004-100000-0,B-004-10000 FJ21011000004
- +
432 Nut GZBLS-B-001-060000-0,B-001-06000 FJ21003000013
- +
C80 Nut GZBLS-B-004-060000-0,B-004-06000 FJ21011000023
- +
934 Nut GZBLS-B-004-080000-0,B-004-08000 FJ21011000024
- +
J2 Nut B-004-010000-2 FJ21021000001
- +
A32 Ornamental box JZ12000200176
- +
E1 Outer hex bolt B-014-100351-1 FJ22012000013
- +
A11 Outer hex bolt GZBLS-B-014-050100-0,B-014-05010 FJ22012000070
- +
C6 Outer hex bolt B-014-080351-2 FJ04009004956
- +
A9 pulley TX-40E-000200-0 JZ10500400021
- +
