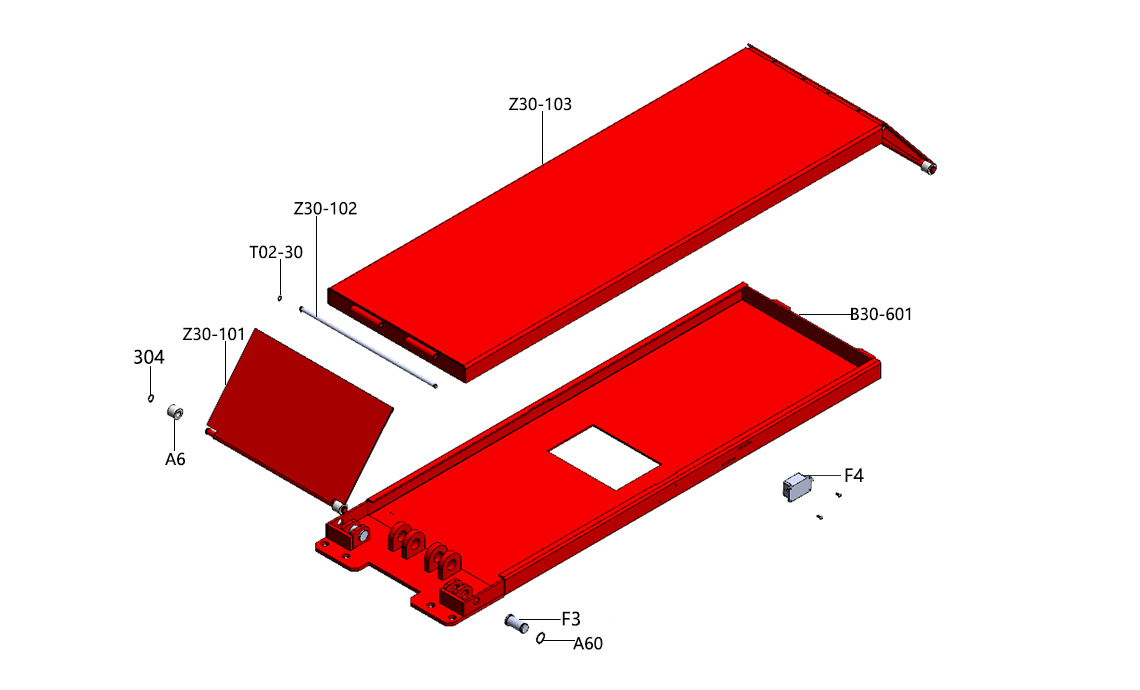

Picture Graph code Name U8 code SKU Price: Qty:
B30-601 SZ-3Z1-010000-Z JZ20100100044
- +
Z30-102 SX-3Z1-000500-0 JZ10300100467
- +
A6 loading dock board roller DG-3B4-001500-0 JZ12100600008
- +
Z30-101 ramps SZ-3Z1-080000-Z JZ20100500085
- +
A60 Snap Ring GZBLS-B-055-300001-0,B-055-30000 FJ14004000015
- +
304 Snap Ring GZBLS-B-055-160001-0,B-055-16000 FJ14004000007
- +
T02-30 Snap Ring GZBLS-B-055-100001-1,B-055-10000 FJ14004000001
- +
F3 stationary shaft of oil cylinder??with screw thread?? XX-3B1-000700-1 JZ10300100461
- +
Z30-103 Top plate (painted) SZ-3Z1-070000-Z JZ20100400130
- +
F4 upper limit switch(only one side) S-060-008122-0 DD12007000004
- +
