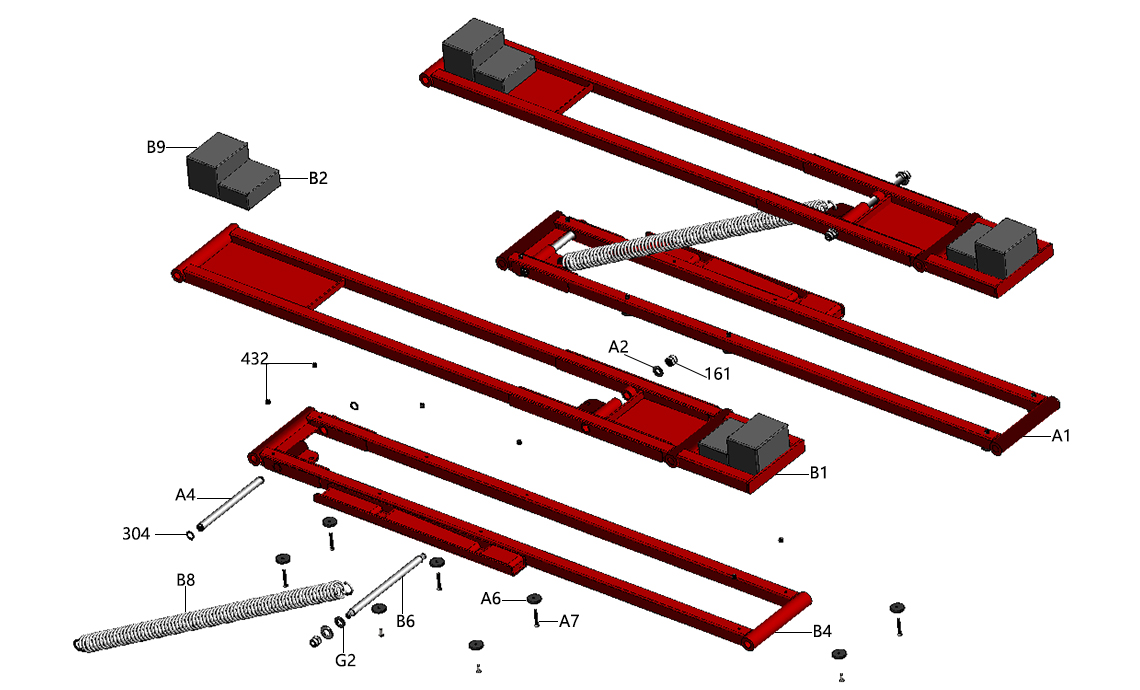

Picture Graph code Name U8 code SKU Price: Qty:
432 Nut GZBLS-B-001-060000-0,B-001-06000 FJ21003000013
- +
G2 Flat washer B-040-173030-1 FJ15006000041
- +
A2 Flat washer B-040-132425-1 FJ15006000018
- +
A4 Lower shaft of oil cylinder SX-UHA-000200-0 JZ03021016321
- +
B4 Main Platform Bottom Plate Components JZ02027012904
- +
161 Nut GZBLS-B-001-120000-0,B-001-12000 FJ21003000002
- +
B8 Pull spring 420 SG-UHA-000500-0 JZ09021024030
- +
B2 Rubber pad SG-UHA-408011-0 JZ09021024035
- +
A6 Rubber pad φ30 SG-UHA-000600-0 JZ09021024031
- +
B9 Rubber pad 1 SG-UHA-808011-0 JZ09021024036
- +
A7 screw B-017-040081-0 FJ19016000033
- +
304 Snap Ring GZBLS-B-055-160001-0,B-055-16000 FJ14004000007
- +
A1 Sub platform base plate components JZ02027012909
- +
B1 Top plate component JZ02027012905
- +
B6 Upper shaft of oil cylinder SX-UHA-000300-0 JZ03021016320
- +
