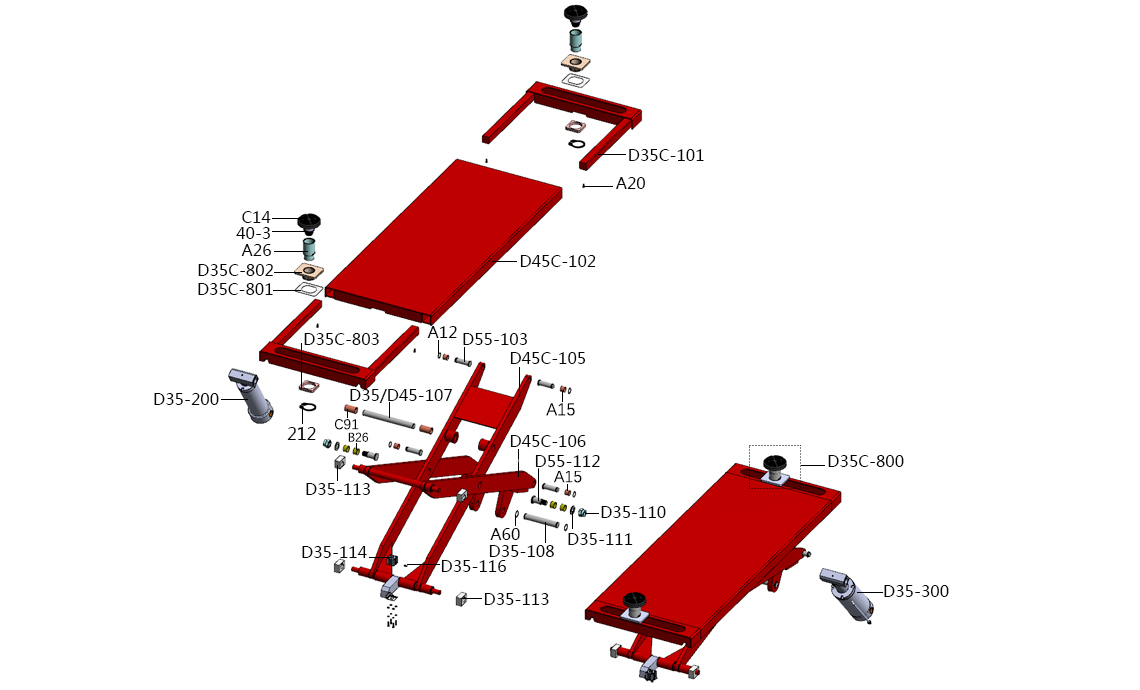

Picture Graph code Name U8 code SKU Price: Qty:
A20 hex socket head cap screw GZBLS-B-011-060120-1,B-010-06012 FJ22009000087
- +
40-3 Three section tray S-013-107000-0 JZ30100200002
- +
D55-112 Axis DX-5S4-001400-0 JZ10300100429
- +
D35-114 cylinder S-220-025015-0 EQ15001000003
- +
D45C-106 External connecting rod component DZ-45C-040000-Z JZ20100200116
- +
D35-111 Flat washer B-040-264440-1 FJ15006000058
- +
A26 Height increasing column TG-TEH-000070-1 JZ10400100521
- +
D35C-800 Height increasing tray assembly SA-30C-000000-W JZ30100700038
- +
D45C-105 Internal connecting rod assembly DZ-45C-050000-Z JZ20100200117
- +
D35-108 lower stationary shaft of oil cylinder JZ10300100412
- +
D35-110 Nut B-004-240001-1 FJ21003000008
- +
D35C-803 positioning plate SZ-30C-000100-0 JZ10100201089
- +
D35-116 Quick coupler S-010-000506-0 EQ11005000032
- +
C14 Round rubber pads S-013-107000-1 JZ12100800006
- +
D35C-801 Rubber pad S-420-100500-0 JZ12100800015
- +
B26 Shaft sleeve S-040-003020-0 FJ11002000012
- +
A15 Shaft sleeve S-040-002520-0 FJ11002000006
- +
C91 Shaft sleeve S-040-003058-0 FJ11002000021
- +
D35C-802 Skateboard components SZ-30C-020000-Z JZ20102800004
- +
A12 Snap Ring B-055-250001-0,B-055-250001-0 FJ14004000013
- +
212 Snap Ring B-055-650001-0,B-055-650001-0 FJ14004000023
- +
A60 Snap Ring GZBLS-B-055-300001-0,B-055-30000 FJ14004000015
- +
D55-103 stationary shaft DX-5S4-000300-0 JZ10300100424
- +
D35-113 Sub sliding block DG-3S4-003600-0 JZ12100200062
- +
D45C-102 Subboard components DZ-45C-060000-Z JZ20100400126
- +
D35C-101 Telescopic arm component DZ-35C-030000-Z JZ20100700013
- +
D35/D45-107 upper stationary shaft of oil cylinder JZ10300100413
- +
