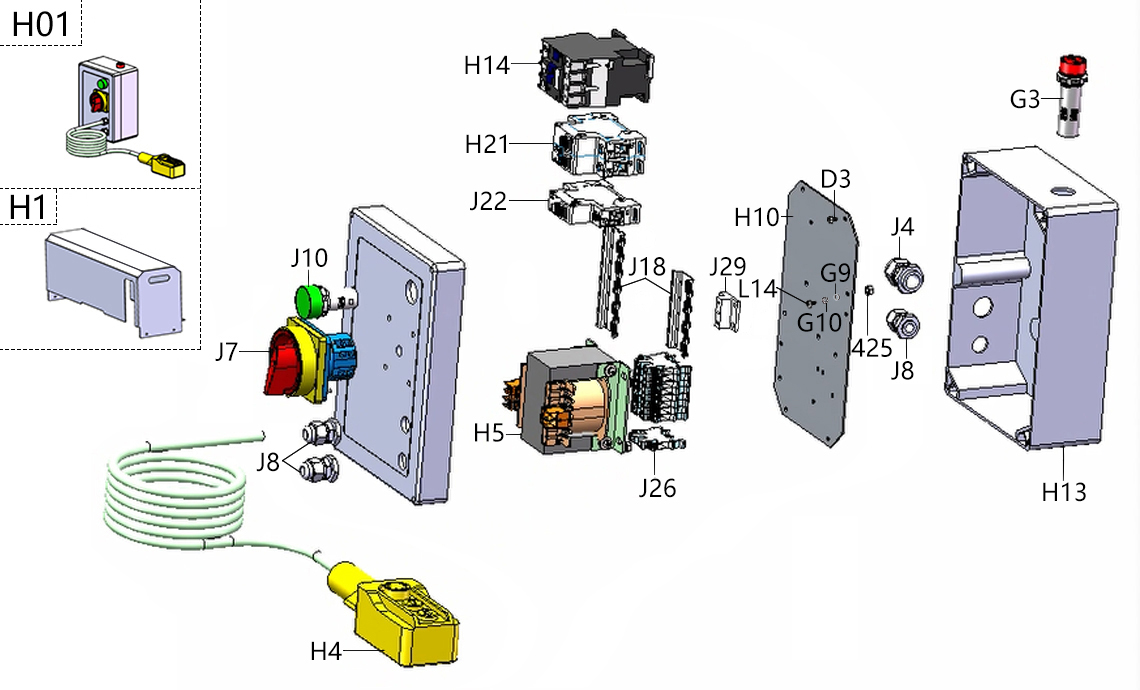

Picture Graph code Name U8 code SKU Price: Qty:
425 Nut GZBLS-B-004-040000-0,B-004-04000 FJ21011000020
- +
H14 AC Contactor H-030-050011-2 DD11001000004
- +
H4 bridge crane button switch 2-button+quick stop S-060-000012-0 DD12008000002
- +
G3 Buzzer D-102-038022-0 DD17007000001
- +
J22 Circuit breaker D-100-C101P0-0 DD10003000008
- +
H21 Circuit breaker D-100-C102P0-0 DD10003000010
- +
H01 Complete control box-DP7(220V) XA-DP7-220002-0 JZ30100500374
- +
H13 Control box body D-00K-372211-0 JZ30100500425
- +
H1 Control box cover JZ20104100035
- +
J18 Electrical guide rail D-101-091000-0 DD02008000001
- +
G10 Flat washer B-040-040908-1 FJ15006000080
- +
G9 Flat washer GZBLS-B-050-040000-0,B-050-04000 FJ15004000014
- +
J29 grounding strip D-073-010203-0 DD13004000005
- +
J10 Indicator light D-090-024022-0 DD08005000010
- +
H10 Mounting plate JZ10100200116
- +
J4 Power cable socket D-036-000135-0 DD02001000002
- +
J8 Power cable socket D-036-000009-0 DD02001000005
- +
J7 Power switch S-060-262004-1 DD12009000009
- +
L14 screw B-024-040101-0,B-024-040101-0,GZ FJ19022000018
- +
D3 screw B-021-030008-0 FJ19025000008
- +
J26 Terminal D-073-UK25B0-0 DD13003000002
- +
H5 transformer S-052-100000-1 DD17003000020
- +
