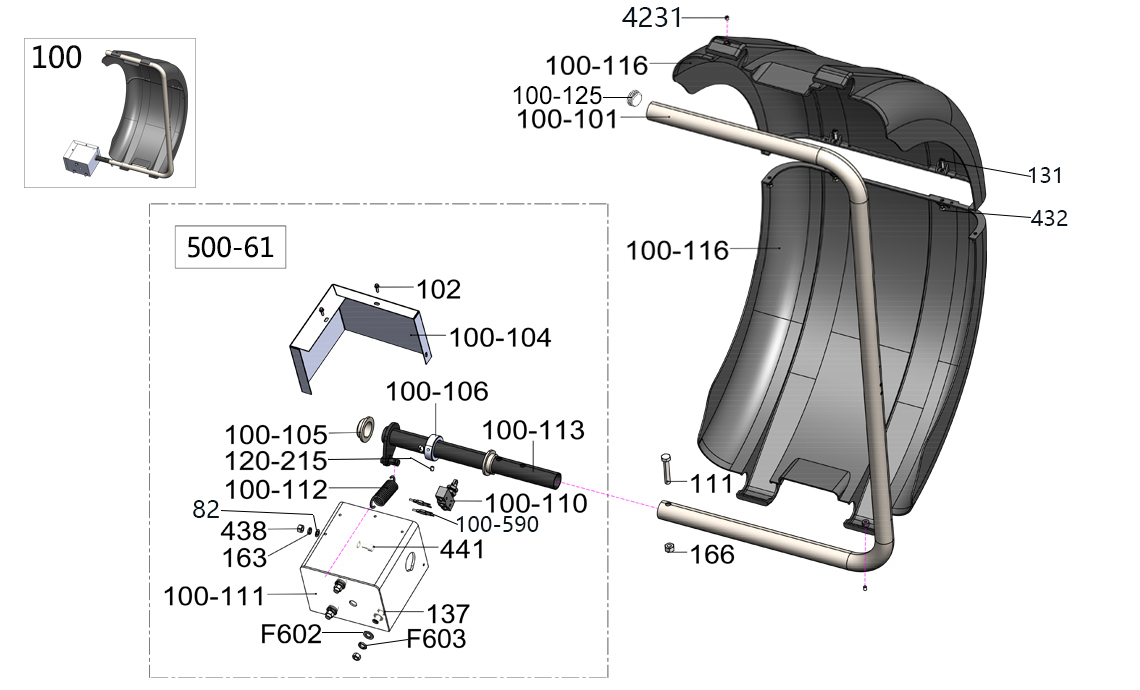

Picture Graph code Name U8 code SKU Price: Qty:
166 Nut GZBLS-B-001-100000-0,B-001-10000 FJ21003000001
- +
100-101 Protection Hood Rotating Shaft PX-100-200200-0 JZ20203100133
- +
102 outer hex self-tapping and self-auger screw M4.8*16 B-013-050161-1 FJ19005000001
- +
100-110 Micro switch S-060-000410-0 DD12007000001
- +
131 hex socket head cap screw GZBLS-B-011-060161-0,B-010-06016 FJ22009000093
- +
432 Nut GZBLS-B-001-060000-0,B-001-06000 FJ21003000013
- +
100-116 Protection Hood Assembly(A complete protective hood consisting of 2 pieces, please order 2 pieces) P-100-200100-0 JZ12000200126
- +
100-104 Cover for protection hood box PX-100-030000-0 JZ20202800024
- +
163 Flat washer B-050-080000-0 FJ15004000021
- +
F602 Flat washer B-040-112020-1,B-040-102020-1 FJ15006000006
- +
82 Flat washer B-040-081715-1 FJ15006000107
- +
F603 Flat washer B-050-100000-0 FJ15004000002
- +
441 hex socket head cap screw B-010-080201-0 FJ22009000123
- +
Hex wrench S-105-000050-0,G-035-050050-0 GF29009000003
- +
100 LW-Hood100 PW-108-010000-0 JZ30303600101
- +
100-590 Micro switch wire PZ-000-180520-1 JZ12400300054
- +
438 Nut B-004-080001-0 FJ21011000025
- +
137 Outer hex bolt B-014-100251-0 FJ22012000010
- +
111 Outer hex bolt B-014-100451-0 FJ22012000017
- +
500-61 Protect axle box assembly 500 PW-108-050000-2 JZ30303600108
- +
100-111 Protection Hood Box PX-100-020000-0 JZ20202800022
- +
100-113 Protection hood shaft PX-800-040000-0 JZ20202800021
- +
100-125 Protection Hood shaft block P-100-200300-0 JZ20202800036
- +
100-106 Protection hood shaft sleeve PX-800-050000-0 JZ12000200150
- +
100-112 Protection hood spring P-800-330000-0 JZ11700200023
- +
Protection Hood wire PZ-000-180520-0 JZ12400300036
- +
4231 screw B-019-350161-0 FJ19017000006
- +
120-215 screw B-007-060081-0 FJ19006000011
- +
100-105 Sheath P-800-180000-0 JZ12001800078
- +
Wrench PX-100-200400-0 JZ20203100029
- +
