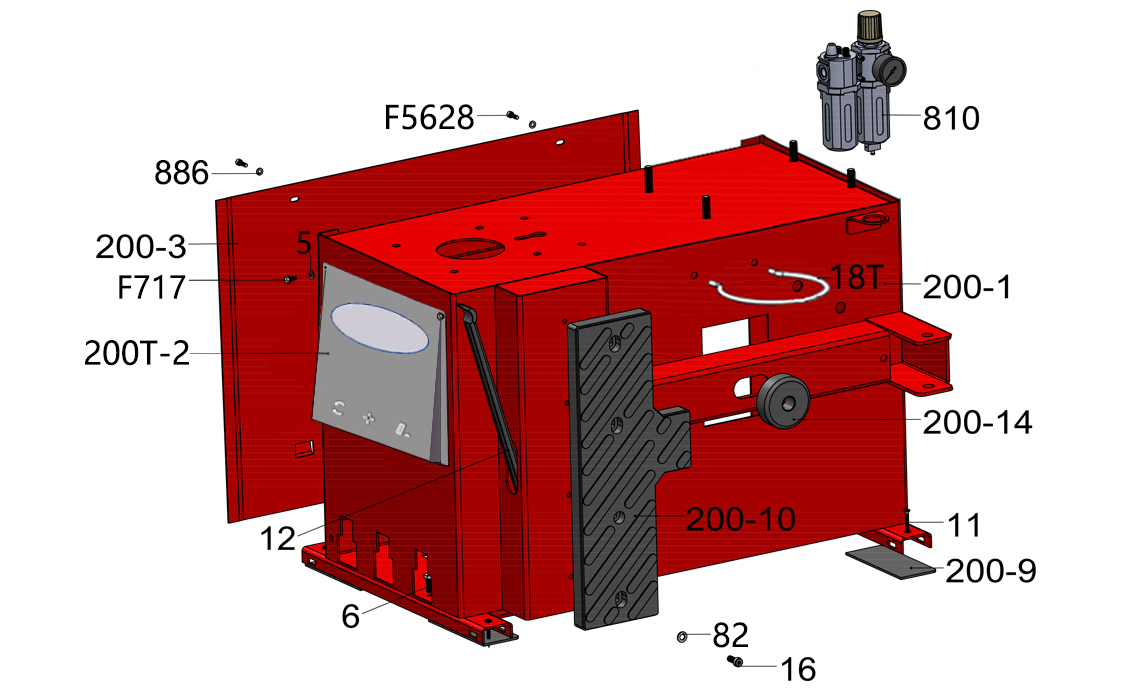

Picture Graph code Name U8 code SKU Price: Qty:
5 Flat washer B-040-061412-1 FJ15006000095
- +
12 Lifting lever C-200-580000-0 JZ11900100004
- +
200-14 Bead breaker arm rubber C-200-510000-0 JZ20200200010
- +
16 hex socket head cap screw GZBLS-B-011-080251-0,B-010-08025 FJ22009000124
- +
200-3 Left cover CX-200-020000-0 JZ20200800016
- +
200-1 machine body CX-200-010000-0 JZ20200100026
- +
200-10 Bead breaker buffer with pot point C-200-500000-0 JZ20200100032
- +
82 Flat washer B-040-081715-1 FJ15006000107
- +
886 Flat washer B-040-050000-1 FJ15006000089
- +
F5628 hex socket head cap screw B-010-050101-0 FJ22009000063
- +
F717 hex socket head cap screw B-010-060101-0 FJ22009000084
- +
18T Lubrication oil box support C-200-011100-T JZ20200100028
- +
6 Outer hex bolt B-014-080201-0 FJ22012000098
- +
200T-2 Pedal front cover 200T C-200-080000-T JZ20200900029
- +
200-9 Rubber foot buffer C-000-001020-0 JZ20200100081
- +
11 screw B-027-060401-0 FJ19004000005
- +
