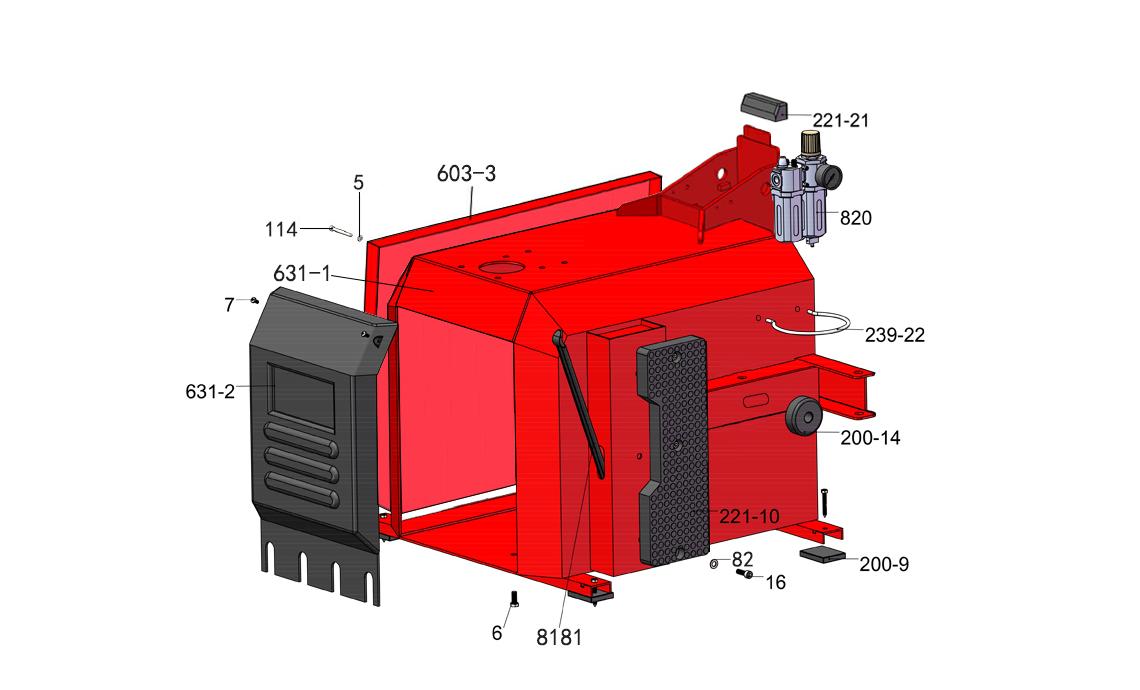

Picture Graph code Name U8 code SKU Price: Qty:
5 Flat washer B-040-061412-1 FJ15006000095
- +
631-1 Machine body 6631 JZ20200100077
- +
631-2 Pedal front cover C-6631-080100-0 JZ12000200112
- +
603-3 left body 6603 JZ20200800037
- +
114 screw B-025-060101-0 FJ19012000012
- +
200-14 Bead breaker arm rubber C-200-510000-0 JZ20200200010
- +
16 hex socket head cap screw GZBLS-B-011-080251-0,B-010-08025 FJ22009000124
- +
221-10 Bead breaker buffer C-221-500000-0 JZ20200100049
- +
82 Flat washer B-040-081715-1 FJ15006000107
- +
8181 Lifting lever JZ11900100006
- +
239-22 Oil-water box support C-239-333700-0 JZ20200100082
- +
6 Outer hex bolt B-014-080201-0 FJ22012000098
- +
200-9 Rubber foot buffer C-000-001020-0 JZ20200100081
- +
7 screw B-024-050101-1 FJ19018000006
- +
221-21 Tilting protect cover C-221-820000-0 JZ12000200064
- +
