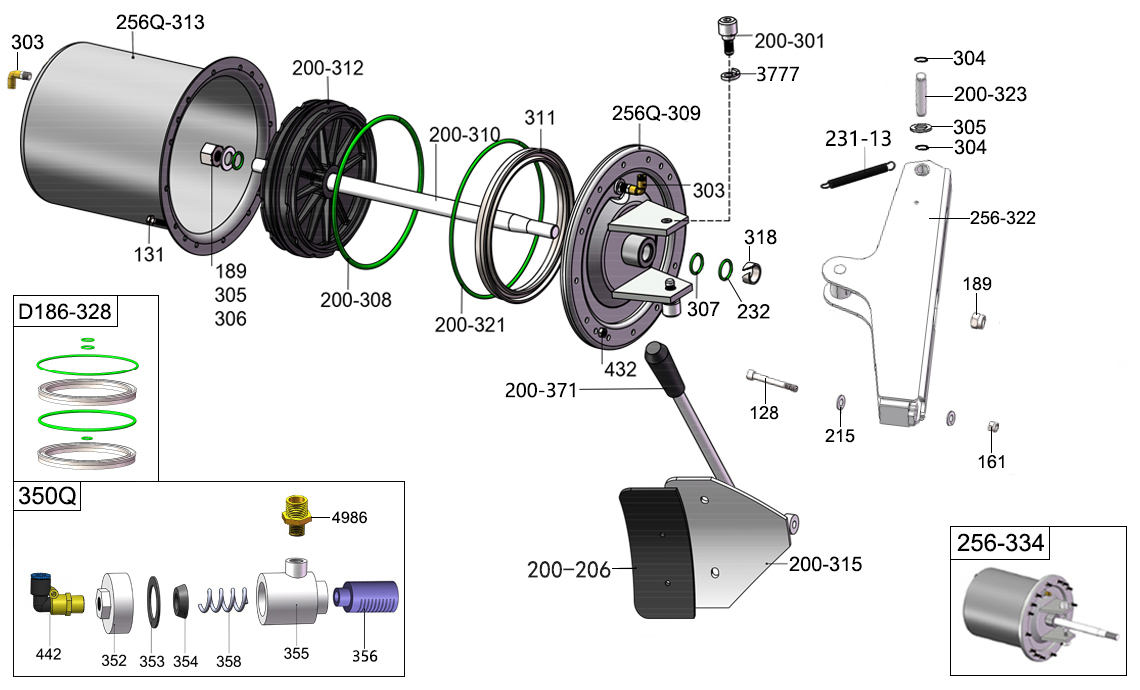

231-13 |
铲臂拉簧U2310136 |
C-231-360000-0 |
JZ11700200020 |
|
|
|
|
305 |
平垫圈 |
B-040-162820-1 |
FJ15006000039 |
|
|
|
|
189 |
非金属自锁螺母M16*1.5大气缸用 |
B-001-160001-1 |
FJ21004000001 |
|
|
|
|
442 |
快插弯头 |
S-012-010808-0 |
EQ10003000016 |
|
|
|
|
354 |
皮碗U2098016006 |
|
JZ20201600092 |
|
|
|
|
131 |
内六角圆柱头螺栓全牙M6*16 |
GZBLS-B-011-060161-0,B-010-06016 |
FJ22009000093 |
|
|
|
|
215 |
平垫Ø12X30X3（可配压胎铲和卡爪螺丝） |
GZBLS-B-040-122402-0,B-040-12252 |
FJ15006000019 |
|
|
|
|
200-321 |
O型密封圈 |
S-000-180400-0 |
FJ29002000082 |
|
|
|
|
200-308 |
O型密封圈 |
S-000-175500-0 |
FJ29002000071 |
|
|
|
|
306 |
O型密封圈 |
GZBLS-S-000-016265-1,S-000-01626 |
FJ29002000056 |
|
|
|
|
303 |
二通弯头（90度）1/4-φ8 |
GZBLS-S-015-020802-6,S-014-01040 |
EQ11004000009 |
|
|
|
|
355 |
大气缸快排阀体U2098016001 |
C-098-600100-0 |
JZ12000100001 |
|
|
|
|
352 |
大气缸快排阀盖U2098016002 |
C-098-600200-0 |
JZ12000200078 |
|
|
|
|
353 |
密封片U2098016004 |
C-098-600400-0 |
JZ12100400003 |
|
|
|
|
358 |
压缩弹簧U2098016005 |
C-2098-600500-0 |
JZ11700300045 |
|
|
|
|
128 |
内六角圆柱头螺栓全牙 |
B-010-120801-0 |
FJ22008000016 |
|
|
|
|
356 |
塑料消声器 |
|
EQ04002000007 |
|
|
|
|
432 |
非金属自锁螺母M6 |
GZBLS-B-001-060000-0,B-001-06000 |
FJ21003000013 |
|
|
|
|
3777 |
弹簧垫圈 |
B-050-140000-0 |
FJ15004000006 |
|
|
|
|
200-206 |
拆胎铲护套（凹）U200(鼎捷) |
|
JZ12000200206 |
|
|
|
|
200-371 |
压胎铲手柄套U200010702 |
C-200-070200-0 |
JZ12000300004 |
|
|
|
|
232 |
O形密封圈φ19.6*2.62 |
S-000-019262-0 |
FJ29002000086 |
|
|
|
|
307 |
O形密封圈φ20*2.65 |
S-000-020265-0 |
FJ29002000095 |
|
|
|
|
311 |
V形密封圈φ185*168*10.8(+0.1/-0.3) |
S-005-168115-0 |
FJ29004000001 |
|
|
|
|
256-322 |
铲臂U2560103P(喷漆) |
|
JZ20200200018 |
|
|
|
|
200-323 |
铲臂销 |
CX-200-040000-0 |
JZ20200200025 |
|
|
|
|
256Q-309 |
大气缸盖组件（双孔）U200010505(彩锌) |
|
JZ20201900064 |
|
|
|
|
200-312 |
大气缸活塞U200010502φ185 |
C-200-050200-0 |
JZ12500700007 |
|
|
|
|
200-310 |
大气缸活塞杆U200010501φ20*423 |
C-200-050100-0 |
JZ12500200008 |
|
|
|
|
350Q |
大气缸快排阀总成（配件） |
|
JZ30204500105 |
|
|
|
|
256Q-313 |
大气缸筒（双孔）U200010503 |
|
JZ12500100024 |
|
|
|
|
256-334 |
大气缸总成（实件双孔）Φ186（不带快排阀）（鼎捷） |
|
JZ30202000100 |
|
|
|
|
318 |
导向带U200010508 |
|
JZ20201300640 |
|
|
|
|
304 |
卡簧φ16 |
GZBLS-B-055-160001-0,B-055-16000 |
FJ14004000007 |
|
|
|
|
D186-328 |

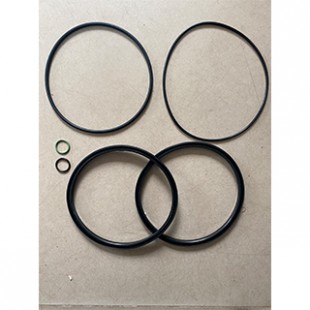

密封圈总成 φ186大气缸整套 |
CW-115-002000-0 |
JZ30204500324 |
|
|
|
|
200-301 |
内六角螺丝(大气缸耳螺丝U200.01.05.05.03)M14*30 |
B-010-140301-0 |
JZ20201900021 |
|
|
|
|
4986 |
外牙直通 |
|
EQ07004000049 |
|
|
|
|
200-315 |
压胎铲组件（弧度压胎铲）U2000107(兰白锌) |
CX-200-070000-7 |
JZ20200300003 |
|
|
|
|
161 |
自锁螺母M12（可配压胎铲螺丝） |
GZBLS-B-001-120000-0,B-001-12000 |
FJ21003000002 |
|
|
|
