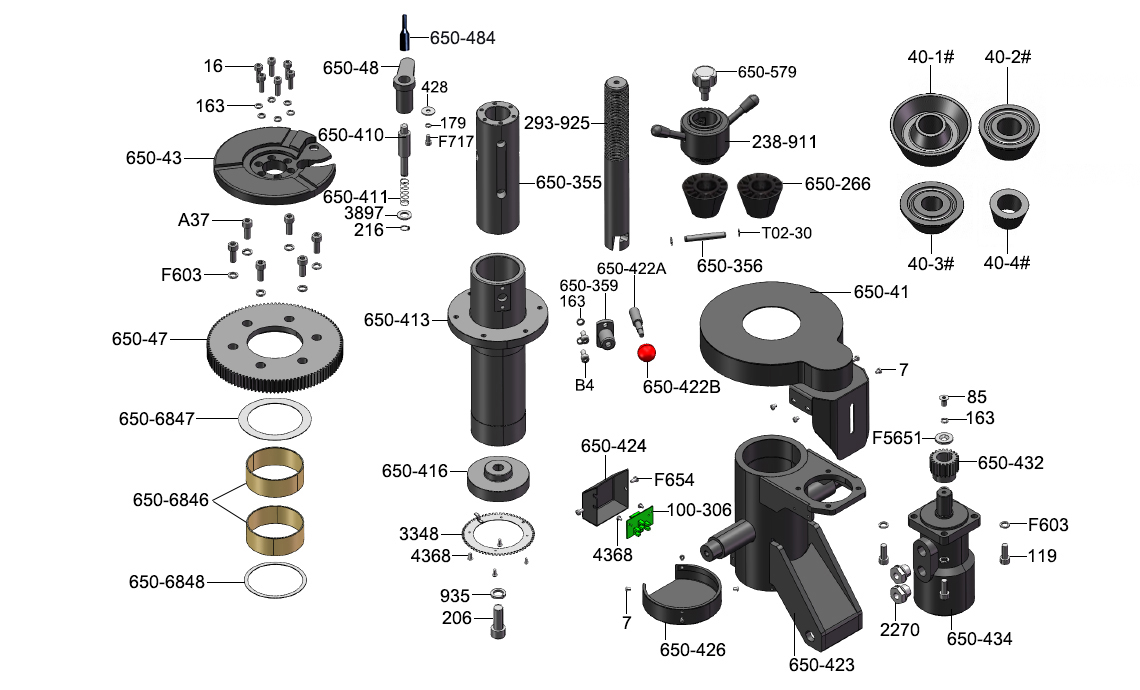

Picture Graph code Name U8 code SKU Price: Qty:
119 hex socket head cap screw B-010-100301-0 FJ22009000009
- +
216 Snap Ring GZBLS-B-055-120001-1,B-055-12000 FJ14004000003
- +
85 Outer hex bolt B-014-080151-0 FJ22012000095
- +
40-1# 1 CONE Tr40,big S-100-040000-1 JZ20204400021
- +
40-2# 2 CONE Tr40,medium S-100-040000-2 JZ20204400022
- +
40-3# 3 CONE Tr40,med-small S-100-040000-3 JZ20204400023
- +
40-4# 4 CONE Tr40,small S-100-040000-4 JZ20204400020
- +
4368 screw B-024-040101-1 FJ19024000004
- +
428 Flat washer B-040-061815-1 FJ15006000098
- +
16 hex socket head cap screw GZBLS-B-011-080251-0,B-010-08025 FJ22009000124
- +
650-579 Rotate the handle JZ10300101177
- +
650-266 Plastic cone JZ12001800193
- +
A27 hex socket head cap screw B-010-100251-0,B-010-100251-0 FJ22009000007
- +
3348 64 tooth grating P-000-210001-0 JZ20204600015
- +
650-48 Aligning block assembly ST650 JZ20201400107
- +
650-47 Big gear ST650 JZ10500200002
- +
650-416 Coding tray holder JZ20201400110
- +

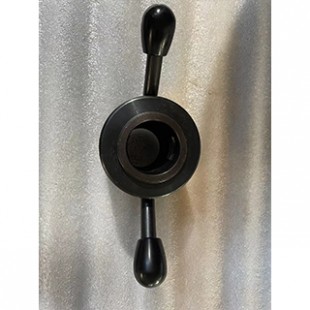

238-911 Complete quick release nut CW-160-000239-0 JZ30204500213
- +
650-6846 Copper bushing JZ10400100495
- +
650-41 Drive gear cover ST650 JZ20201300349
- +
650-484 Extended tire fixing sleeve pin JZ10300101175
- +
3897 Flat washer GZBLS-B-040-060220-0 FJ15006000100
- +
F5651 Flat washer B-040-091616-1,B-040-083030-1 FJ15006000118
- +
206 Flat washer B-050-160000-0 FJ15004000008
- +
179 Flat washer B-050-060000-0 FJ15004000019
- +
163 Flat washer B-050-080000-0 FJ15004000021
- +
F603 Flat washer B-050-100000-0 FJ15004000002
- +
935 hex socket head cap screw B-010-160401-0 FJ22009000040
- +
F717 hex socket head cap screw B-010-060101-0 FJ22009000084
- +
B4 hex socket head cap screw B-010-080161-0 FJ22009000120
- +
2270 Hydraulic core connector JZ20204100029
- +
650-434 Hydraulic motor JZ20202200045
- +
650-6848 Lower slide JZ10100400133
- +
650-426 Mounting base cover JZ20201500059
- +
650-43 Mounting disc assembly ST650 JZ20201500068
- +
650-413 Mounting seat spindle JZ20201500032
- +
650-422A Pin JZ10300101174
- +
650-422B Pin handle JZ12000300008
- +
650-359 Pin seat JZ10600200031
- +
650-432 Pinion JZ20202200002
- +
