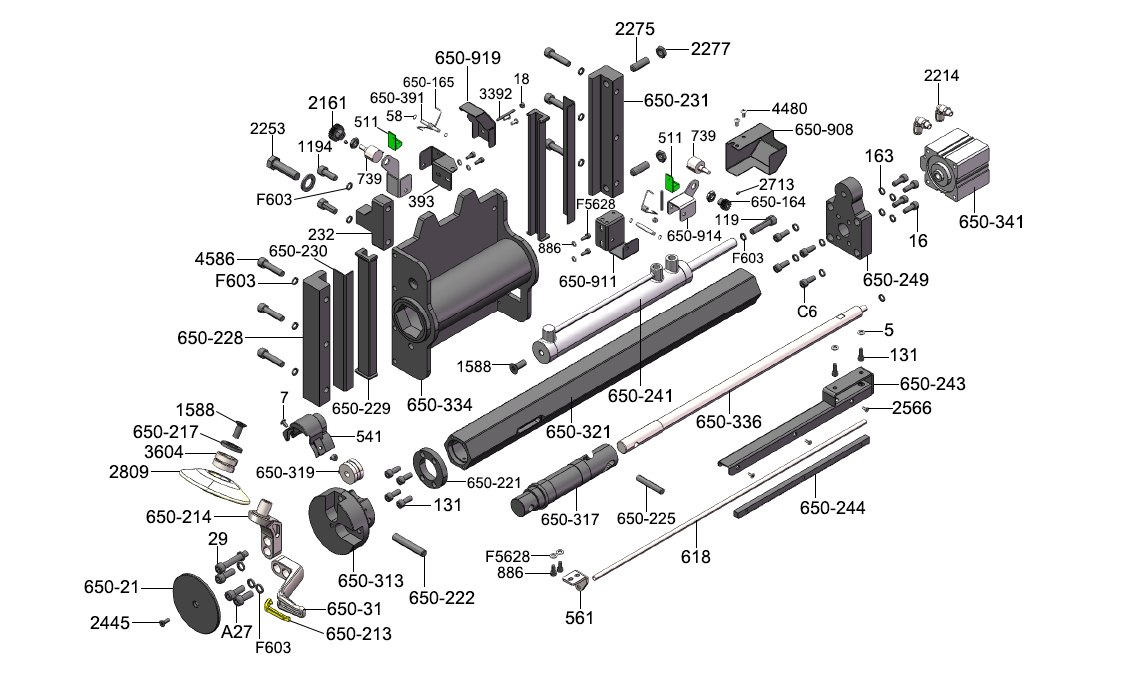

Picture Graph code Name U8 code SKU Price: Qty:
119 hex socket head cap screw B-010-100301-0 FJ22009000009
- +
5 Flat washer B-040-061412-1 FJ15006000095
- +
131 hex socket head cap screw GZBLS-B-011-060161-0,B-010-06016 FJ22009000093
- +
650-229 U-shaped friction plate JZ20201300013
- +
650-230 Adjusting tablet ST650 JZ20201300310
- +
650-231 Lift sleeve back block ST650 JZ20201300307
- +
650-228 Lifting sleeve front pressing block ST650 JZ20201300308
- +
650-319 Sensor Assembly DD18010000002
- +
16 hex socket head cap screw GZBLS-B-011-080251-0,B-010-08025 FJ22009000124
- +

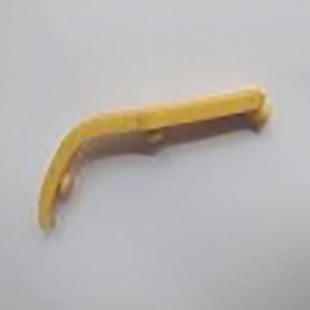

650-31 Tire hook JZ11801300006
- +
A27 hex socket head cap screw B-010-100251-0,B-010-100251-0 FJ22009000007
- +
650-313 Alien rotating disk JZ20201300372
- +
3604 Bearing S-040-061904-2 FJ10002000005
- +
511 Board JZ12300100131
- +
618 Conduit JZ20202300003
- +
650-336 Extension lever JZ20201900002
- +
163 Flat washer B-050-080000-0 FJ15004000021
- +
F603 Flat washer B-050-100000-0 FJ15004000002
- +
886 Flat washer B-040-050000-1 FJ15006000089
- +
650-911 Front and rear distance measuring bracket JZ20201300355
- +
650-908 Front and rear distance measuring bracket cover JZ20201300354
- +
650-244 Front and rear ranging rack JZ20202300059
- +
650-243 Front and rear ranging rack cover JZ20201300353
- +
739 Gauge sensor DD21001000007
- +
4586 hex socket head cap screw B-010-100401-0 FJ22009000014
- +
2253 hex socket head cap screw FJ22009000151
- +
C6 hex socket head cap screw GZBLS-B-010-080350-0,B-010-08035 FJ22009000128
- +
1194 hex socket head cap screw FJ22009000170
- +
F5628 hex socket head cap screw B-010-050101-0 FJ22009000063
- +
29 hex socket head cap screw B-010-100551-0 FJ22009000017
- +
650-213 Install and remove hook pad JZ12000400006
- +
650-317 L-commutation axis JZ20201300018
- +
561 Line pipe bracket JZ20201300352
- +
2277 Nut FJ21006000005
- +
18 Nut GZBLS-B-004-050000-0,B-004-05000 FJ21011000022
- +
650-914 Potentiometer rotating seat JZ20201300356
- +
650-225 Remove reversing sliding pin JZ20201000004
- +
2809 Roller C-238-200500-0,CZ-238-200500-0 JZ20201300155
- +
650-222 Rotating disk fixing pin JZ20201500006
- +
2731 screw FJ19006000014
- +
