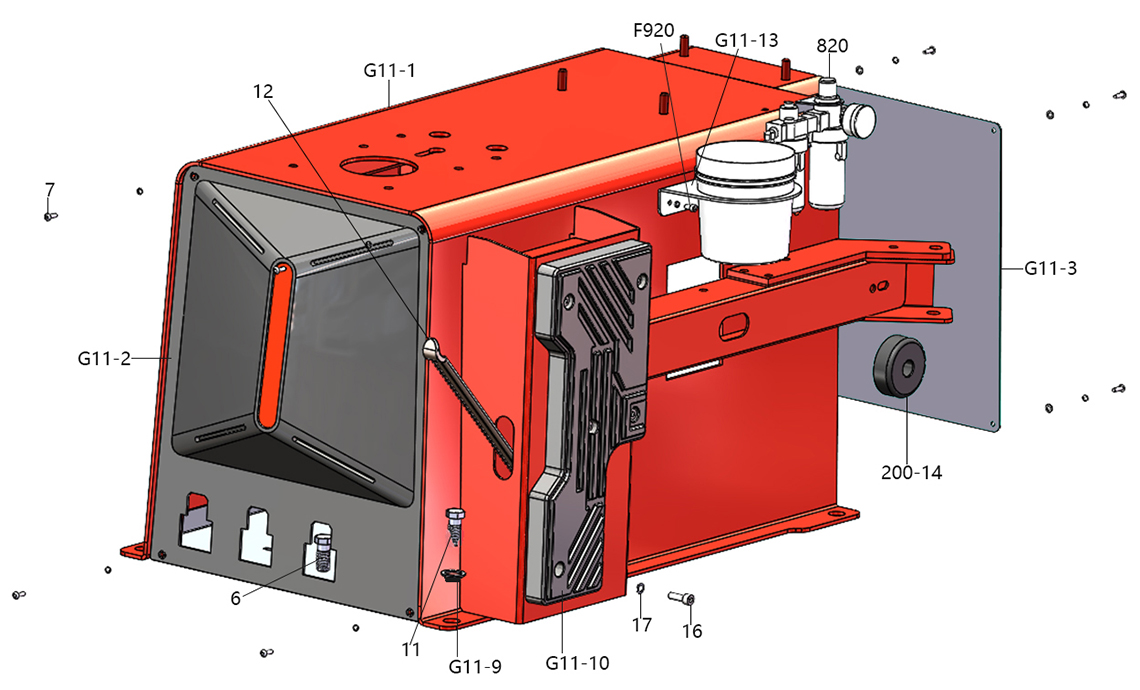

Picture Graph code Name U8 code SKU Price: Qty:
12 Lifting lever C-200-580000-1 JZ11900100003
- +
200-14 Bead breaker arm rubber C-200-510000-0 JZ20200200010
- +
16 hex socket head cap screw GZBLS-B-011-080251-0,B-010-08025 FJ22009000124
- +
G11-10 Bead breaker buffer G11 C-G11-500000-0 JZ20200100004
- +
17 Flat washer B-040-081516-1 FJ15006000104
- +
F920 hex socket head cap screw GZBLS-B-011-050161-0,B-010-05016 FJ22009000068
- +
G11-1 Machine body G11 CX-G11-010000-0 JZ20200100001
- +
G11-13 Oil-water box support CX-G11-011100-0 JZ20202000025
- +
6 Outer hex bolt B-014-080201-0 FJ22012000098
- +

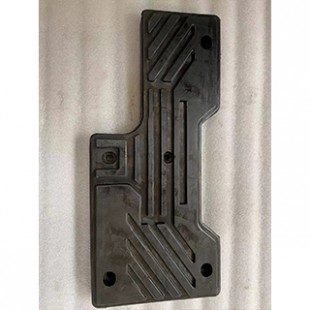

G11-2 Pedal front cover G11 C-G11-080000-0 JZ20200900006
- +
G11-3 Rear block plate G11 CX-G11-020200-0 JZ20200100336
- +
G11-9 Rubber foot mat G11 C-G11-001020-0 JZ20200100080
- +
11 screw B-027-060401-0 FJ19004000005
- +
7 screw B-024-050101-1 FJ19018000006
- +
