Picture Graph code Name U8 code SKU Price: Qty:
166 Nut GZBLS-B-001-100000-0,B-001-10000 FJ21003000001
- +
79 Quick coupler S-012-010806-0 EQ10003000014
- +
F5626 Hand valve S-030-010818-0,GZBLS-S-031-03022 EQ02011000002
- +
F770-1 Limit sleeve CX-036-200300-0 JZ20201200036
- +
215 Flat washer GZBLS-B-040-122402-0,B-040-12252 FJ15006000019
- +
432 Nut GZBLS-B-001-060000-0,B-001-06000 FJ21003000013
- +
F728 Friction sheet top block JZ20201300890
- +
425 Nut GZBLS-B-004-040000-0,B-004-04000 FJ21011000020
- +
F5636 Abrasion inner tabletting CX-007-040000-0 JZ20201300227
- +
F5640 Abrasion outer tabletting CX-007-050000-0 JZ20201300230
- +
F701 Column 007 CX-007-010000-0 JZ20200400016
- +
F737 Connection pin CX-007-140000-0 JZ20201300226
- +
111 Control arm plate washer CX-007-180800-0 JZ20201300223
- +
F5623 Control valve protection cover C-007-181000-0 JZ12000200096
- +
F5651 Flat washer B-040-091616-1,B-040-083030-1 FJ15006000118
- +
163 Flat washer B-050-080000-0 FJ15004000021
- +
F602 Flat washer B-040-112020-1,B-040-102020-1 FJ15006000006
- +
82 Flat washer B-040-081715-1 FJ15006000107
- +
F603 Flat washer B-050-100000-0 FJ15004000002
- +
F5637 Friction plate isolation block CX-007-070000-0 JZ20201300229
- +
F5602 Guide rail CX-007-020000-0 JZ20201300219
- +
F5612 hex socket head cap screw B-010-121201-0 FJ22008000013
- +
F717 hex socket head cap screw B-010-060101-0 FJ22009000084
- +
441 hex socket head cap screw B-010-080201-0 FJ22009000123
- +
F5616 hex socket head cap screw B-010-060301-0 FJ22009000102
- +

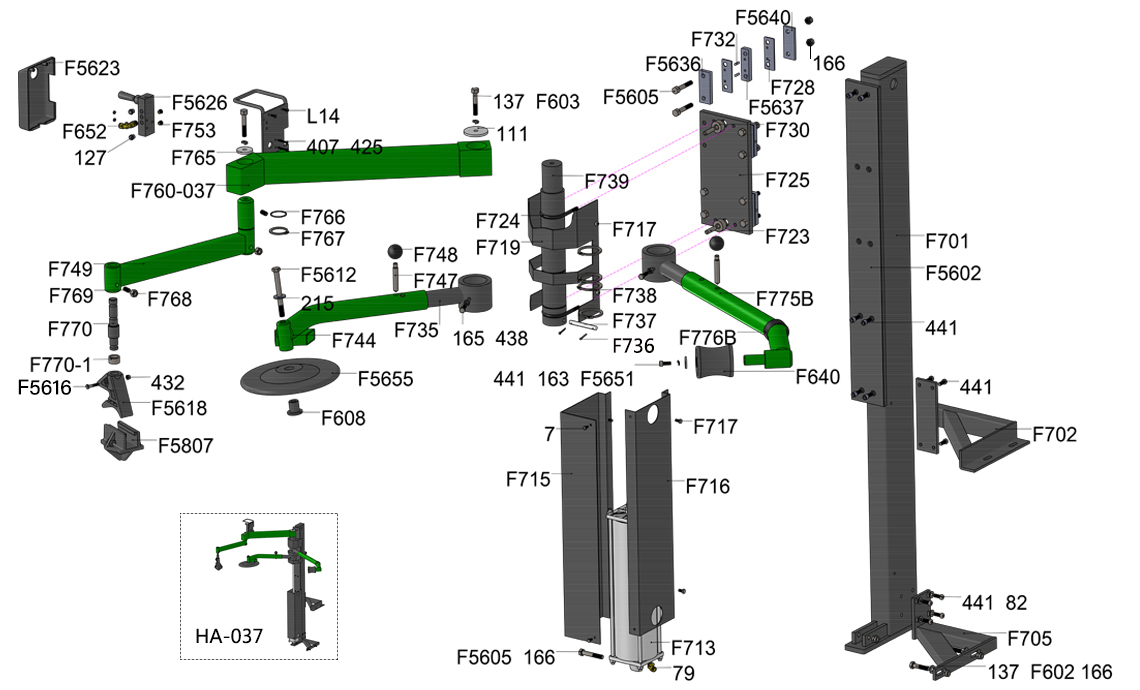

HA-037 LC-Helparm-037 CW-120-003700-0 JZ30204500130
- +
F760-037 Left assist cross arm CX-028-180000-0 JZ20201300087
- +
F724 Locking rod C-007-110000-0 JZ20201300053
- +
F705 Low support for column CX-007-130000-0 JZ20201300055
- +
127 Muffler S-023-010801-0 EQ04002000004
- +
F768 Nut B-004-100001-0 FJ21011000005
- +
438 Nut B-004-080001-0 FJ21011000025
- +
165 Outer hex bolt B-014-080251-0 FJ22012000100
- +
137 Outer hex bolt B-014-100251-0 FJ22012000010
- +
F5605 Outer hex bolt B-014-100601-0 FJ22011000005
- +
F736 Pin B-070-032018-0 FJ26003000014
- +
F747 Pin CX-007-230100-0 JZ20201300218
- +
F748 Pin handle C-007-230200-0,CZ-007-230200-0 JZ20201400007
- +
F770 Pin of tire pressing head CX-036-150000-0 JZ20201300251
- +
F744 Pipe assembly CX-007-220000-0 JZ20201300061
- +
