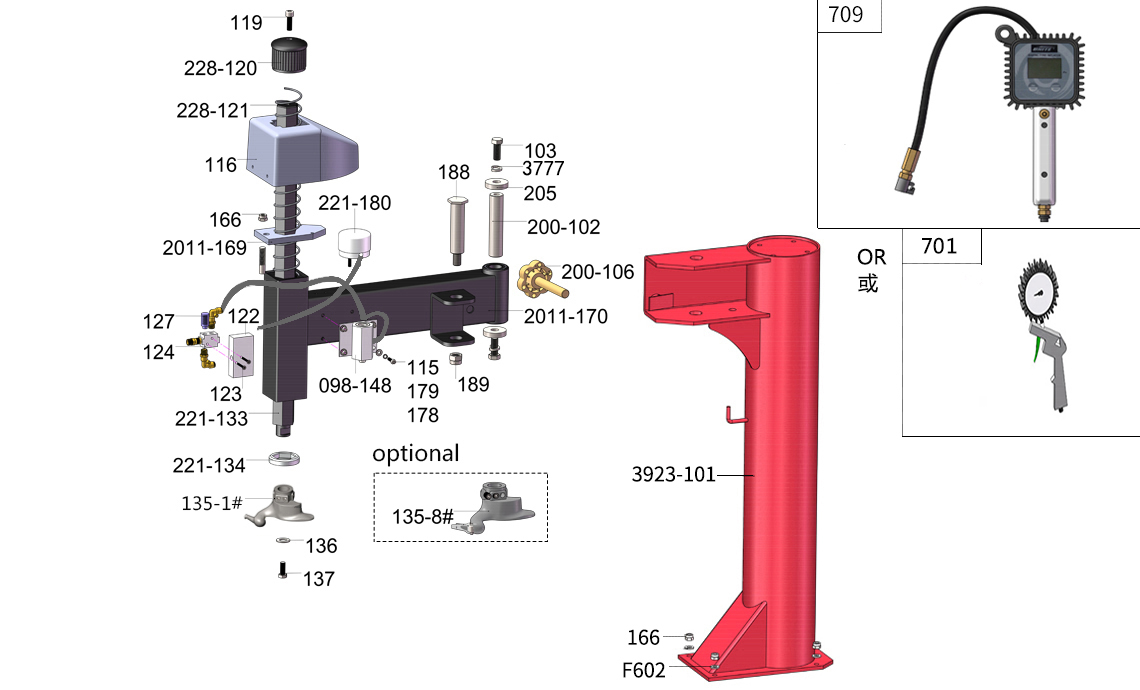

Picture Graph code Name U8 code SKU Price: Qty:
189 Nut B-001-160001-1 FJ21004000001
- +
166 Nut GZBLS-B-001-100000-0,B-001-10000 FJ21003000001
- +
119 hex socket head cap screw B-010-100301-0 FJ22009000009
- +
3777 Flat washer B-050-140000-0 FJ15004000006
- +
115 hex socket head cap screw GZBLS-B-011-060200-1,B-010-06020 FJ22009000097
- +
205 Big washer CX-200-140000-0 JZ20201400046
- +
200-106 Column adjust handle C-200-350000-0 JZ12001900002
- +
3923-101 Column S30110125 CX-311-250000-0 JZ20200400010
- +
701 Digital inflating gun S-038-000100-0 EQ05001000001
- +
709 Digital inflating gun S-038-000200-0 EQ05001000003
- +
F602 Flat washer B-040-112020-1,B-040-102020-1 FJ15006000006
- +
178 Flat washer B-040-061216-1,B-040-061210-1 FJ15006000093
- +
179 Flat washer B-050-060000-0 FJ15004000019
- +
124 Hand valve S-030-010414-2 EQ02012000001
- +
221-169 Hex locking board 221 CX-221-220000-0 JZ20200500032
- +
221-198 Hex locking board spring C-221-400000-0 JZ11700200017
- +
116 Locking plate cap C-298-480000-0 JZ12000200114
- +
122 Locking switch box C-098-090000-0 JZ12000200163
- +
136 Mount/demount head flat washer CX-200-170000-0 JZ11801300045
- +
127 Muffler S-023-010801-0 EQ04002000004
- +
137 Outer hex bolt B-014-100251-0 FJ22012000010
- +
103 Outer hex bolt B-014-140351-0 FJ22012000048
- +
188 Pressing arm pin (right) CX-098-030000-0 JZ20201300266
- +
123 screw GZBLS-B-017-040200-0,B-017-04030 FJ19016000016
- +
2011-170 Swing arm 2011 CX-211-180000-0 JZ20200600007
- +
200-102 Swing arm pin C-200-190000-0 JZ20200600004
- +
228-120 Vertical arm cap 228 C-228-490000-0 JZ12000200102
- +
221-133 Vertical arm S41 CX-2011-160000-0，CX-221-160000-0 JZ20200700016
- +
228-121 Vertical arm spring U228 C-228-390000-0 JZ11700300049
- +
221-134 Vertical arm washer C-228-520000-0 JZ20200700004
- +
