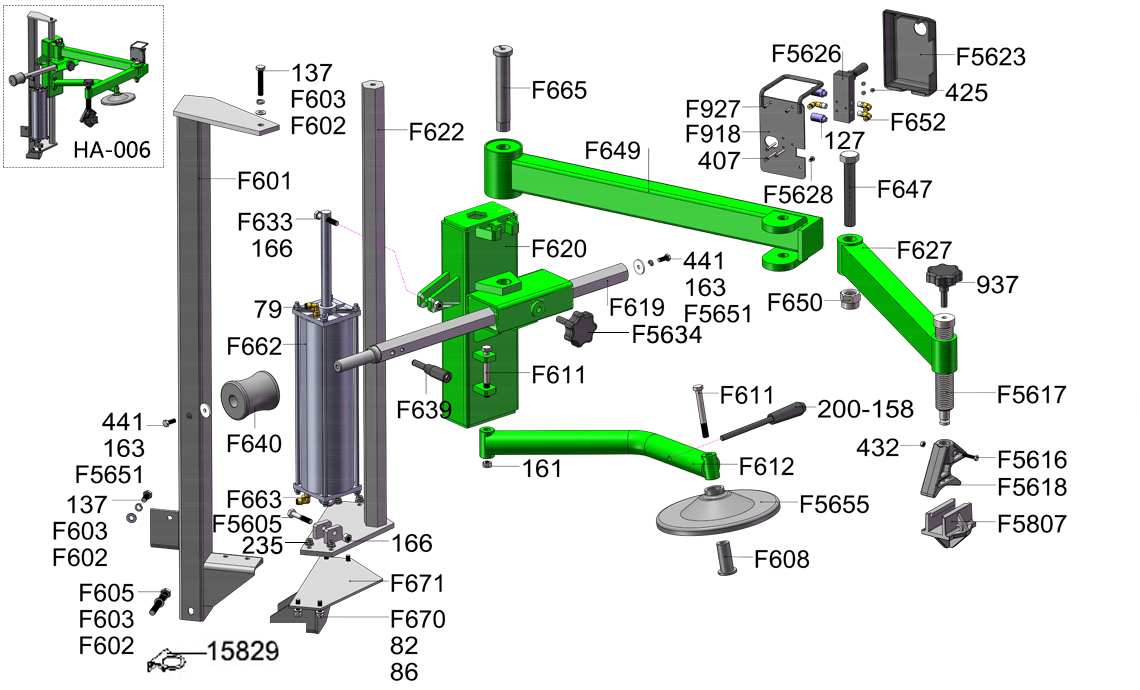

Picture Graph code Name U8 code SKU Price: Qty:
166 Nut GZBLS-B-001-100000-0,B-001-10000 FJ21003000001
- +
F5634 Pentagon handle M10*30 C-006-210000-0 JZ20201300050
- +
F619 Horizontal pushing arm CX-006-170000-0 JZ20201300261
- +
79 Quick coupler S-012-010806-0 EQ10003000014
- +
F5626 Hand valve S-030-010818-0,GZBLS-S-031-03022 EQ02011000002
- +
F601 Column U006 CX-036-010000-0 JZ20201300041
- +
F671 support frame CX-006-140000-0 JZ20201300047
- +
F605 hex socket head cap screw B-010-101001-0 FJ22008000008
- +
432 Nut GZBLS-B-001-060000-0,B-001-06000 FJ21003000013
- +
200-158 Locking handle cover C-200-230200-0 JZ12000300002
- +
425 Nut GZBLS-B-004-040000-0,B-004-04000 FJ21011000020
- +
937 Adjust handle C-238-201501-0 JZ12001800015
- +
F612 Complete assist bar CX-006-060000-0 JZ20201300046
- +
F647 connection bolt CX-036-050000-0 JZ20201300314
- +
F5623 Control valve protection cover C-007-181000-0 JZ12000200096
- +
F5651 Flat washer B-040-091616-1,B-040-083030-1 FJ15006000118
- +
163 Flat washer B-050-080000-0 FJ15004000021
- +
F602 Flat washer B-040-112020-1,B-040-102020-1 FJ15006000006
- +
82 Flat washer B-040-081715-1 FJ15006000107
- +
F603 Flat washer B-050-100000-0 FJ15004000002
- +
F611 hex socket head cap screw B-010-121001-0 FJ22008000012
- +
441 hex socket head cap screw B-010-080201-0 FJ22009000123
- +
F5616 hex socket head cap screw B-010-060301-0 FJ22009000102
- +
F5628 hex socket head cap screw B-010-050101-0 FJ22009000063
- +
HA-006 LC-Helparm-006 CW-120-000600-0 JZ30204500120
- +
127 Muffler S-023-010801-0 EQ04002000004
- +
235 Nut GZBLS-B-001-080000-0,B-001-08000 FJ21003000014
- +
F650 Nut B-001-220001-0 FJ21003000007
- +
161 Nut GZBLS-B-001-120000-0,B-001-12000 FJ21003000002
- +
F633 Outer hex bolt B-014-100551-0 FJ22012000019
- +
137 Outer hex bolt B-014-100251-0 FJ22012000010
- +
F670 Outer hex bolt B-014-080301-0 FJ22012000102
- +
F5605 Outer hex bolt B-014-100601-0 FJ22011000005
- +
F652 Quick coupler S-012-010406-0 EQ10003000007
- +
F663 Quick coupler S-018-010806-0 EQ11004000013
- +

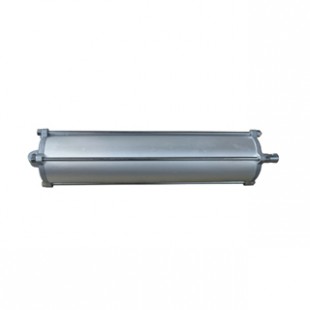

F662 Raise-fall cylinder U006 C-006-040100-0 JZ30204500368
- +
F620 Raise-fall sleeve 036 CX-006-030000-0 JZ20201300042
- +
F918 Raise-fall switch base plate CX-007-180500-0 JZ20201300060
- +
F627 Rotating arm connector 006 CX-006-200000-0 JZ20201300049
- +
F927 screw B-017-040161-0 FJ19016000015
- +
