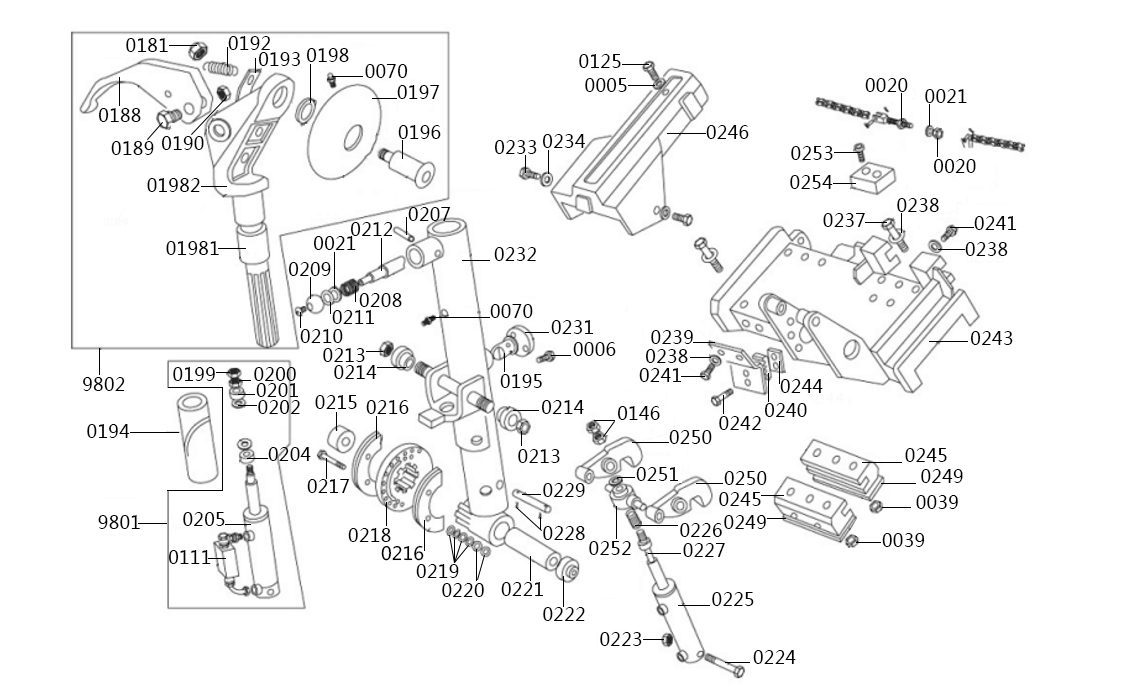

Picture Graph code Name U8 code SKU Price: Qty:
01982 0 MM17004000080
- +
0246 X004048 MM17004000868
- +
01981 X006956 MM17004000064
- +
0221 Assembling and dismantling gun fixed shaft X003686 MM17004000076
- +
0210 Bolt X003675 MM17004000444
- +
0006 Bolt M8X16 X003646 MM17004000445
- +
0218 Cannon flange X003683 MM17004000595
- +
0231 Cap X003695 MM17004000248
- +
0292 Chain X003716 MM17004000384
- +
0019 Chain pin X003647 MM17004000097
- +
9801 Complete Gun inside cylinder with small valve X003717 MM17004000596
- +
9802 Complete mount/demount hook X003718 MM17004000078
- +
0189 Connecting bolt X003657 MM17004000378
- +
0214 Core X003679 MM17004000604
- +
0244 Fixing pipe plastic block X003706 MM17004000265
- +
0240 Fixing pipe plastic block X003702 MM17004000264
- +
0005 Flat washer X003645 MM17004000621
- +
0238 Flat washer X003700 MM17004000620
- +
0216 Friction plate X003681 MM17004000576
- +
0209 Handball X003674 MM17004000659
- +
0204 Locking cap X003670 MM17004000670
- +
0201 Locking cap X003667 MM17004000669
- +
0250 Locking hook X003711 MM17004000667
- +
0252 Locking shaft X003713 MM17004000671
- +
0232 Mount/demount arm 2 X003696 MM17004000062
- +
0225 Mount/demount arm up&down cylinder barrel X003690 MM17004000066
- +
0227 Mount/demount arm up&down cylinder shaft X003692 MM17004000067
- +
0243 Mount/demount carraige X003705 MM17004000069
- +
0245 Mount/demount carraige block X003707 MM17004000070
- +
0254 Mount/demount carraige snubber block X003715 MM17004000071
- +
0188 Mount/demount hook X003656 MM17004000072
- +
0197 Mount/Demount plate X003663 MM17004000074
- +
0196 Mount/Demount plate bolt X003662 MM17004000075
- +
0239 Nut X003701 MM17004000424
- +
0039 Nut X003650 MM17004000425
- +
0020 Nut X003648 MM17004000419
- +
0234 Nut X003698 MM17004000423
- +
0213 Nut X003678 MM17004000421
- +
0199 Nut M12 X003665 MM17004000418
- +
0200 Nut M12 X003666 MM17004000420
- +
