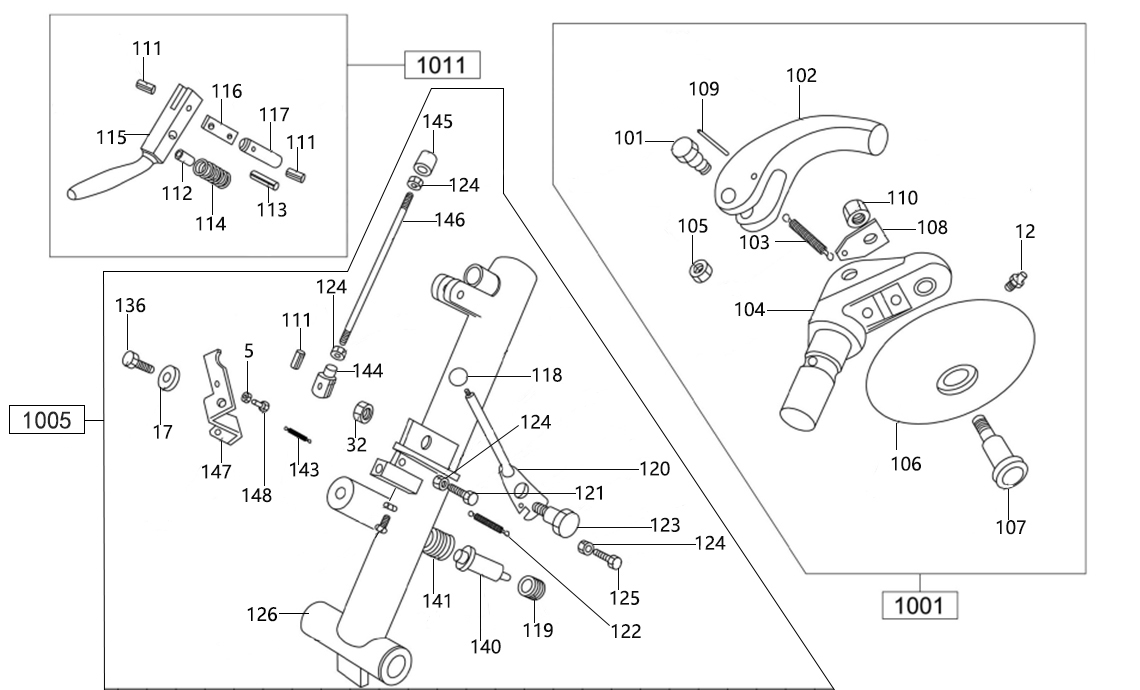

Picture Graph code Name U8 code SKU Price: Qty:
105 Low nut M14*1.5 X002866 MM17004000397
- +
140 Arm ejector X002888 MM17004000944
- +
106 Bead breaker disk X002867 MM17004000951
- +
1011 Complete Latch for mounting tool X002897 MM17004000796
- +
1005 Complete mount demount arm X005643 MM17004000068
- +
1001 Complete Mounting head assembly X002896 MM17004000949
- +
141 Compression spring for mounting arm X002889 MM17004000945
- +
116 Connecting piece for latch X002876 MM17004000769
- +
146 connection rod X002893 MM17004000373
- +
119 Damping cover X002879 MM17004000304
- +
123 Eccentric bolt for ratchet X002883 MM17004000665
- +
112 Expansie pin 10x20 X002872 MM17004000878
- +
111 Expansile pin 6x20 X002871 MM17004000877
- +
109 Expansile pin 8x60 X002869 MM17004000876
- +
113 Expansile pin 8x30 X002873 MM17004000879
- +
108 Hook for spring X002868 MM17004000129
- +
118 Knob X002878 MM17004000658
- +
117 Latch X002877 MM17004000762
- +
115 Lever for latch X002875 MM17004000768
- +
126 Mounting arm X002886 MM17004000942
- +
102 Mounting/demounting tool X002864 MM17004000073
- +
5 Nut M6 X002859 MM17004000401
- +
124 Nut M8 X002884 MM17004000398
- +
12 Oil hole X002860 MM17004000932
- +
145 Pawl X002892 MM17004000042
- +
107 Pin for Bead breaker disk X003509 MM17004000952
- +
120 Ratchet X002880 MM17004000946
- +
114 Returnable spring X002874 MM17004000288
- +
143 Returnable Spring X002890 MM17004000036
- +
125 Screw M8x25 X002885 MM17004000470
- +
121 Screw M8x45 X002881 MM17004000469
- +
148 Screw M6x25 X002895 MM17004000472
- +
136 Screw M8X20 X002887 MM17004000471
- +
32 Self-locking nut M18X1.5 X002862 MM17004000957
- +
110 Self-locking nut M27*2 X002870 MM17004000956
- +
103 Spring X003108 MM17004000369
- +
122 Spring X002882 MM17004000120
- +
104 Tool holder X002865 MM17004000079
- +
101 Tool pin X002863 MM17004000377
- +
147 Triangle connection(safe block) X002894 MM17004000645
- +
