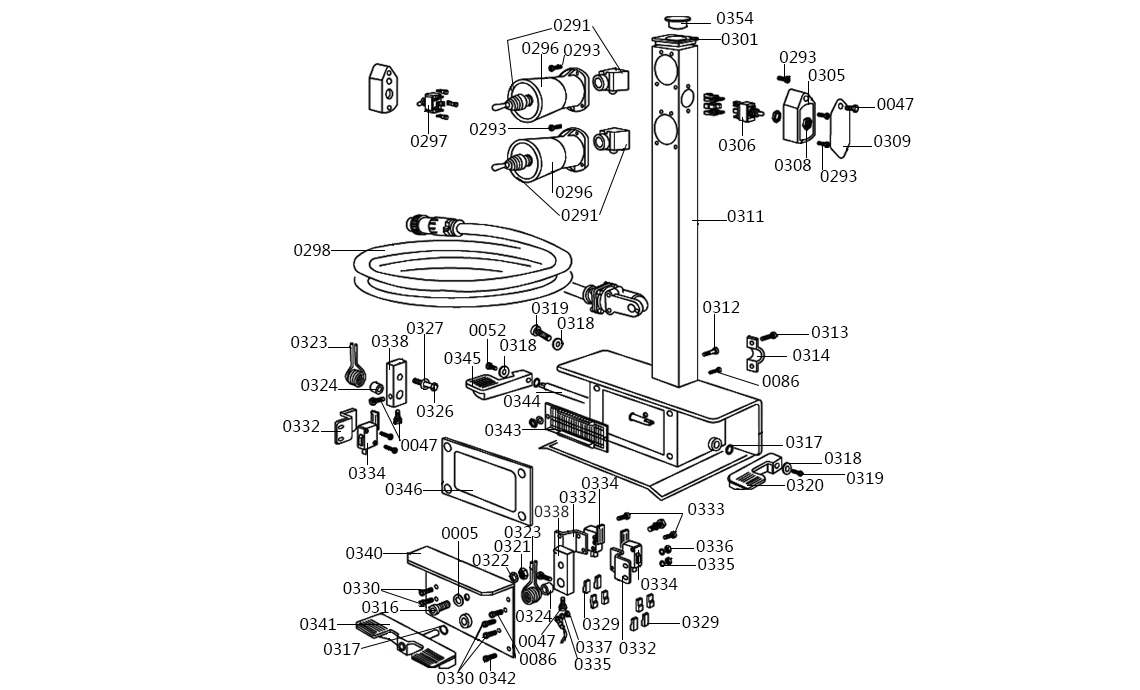

Picture Graph code Name U8 code SKU Price: Qty:
604 Emergency Switch X003295 MM17004000296
- +
0052 Bolt X003822 MM17004000448
- +
0305 Box X003830 MM17004000388
- +
0309 Box cover X003833 MM17004000356
- +
0332 Bracket X003851 MM17004000899
- +
0296 Complete four position switch X003826 MM17004000662
- +
0311 Control unit X003834 MM17004000055
- +
0301 Emergency switch washer X003829 MM17004000298
- +
0317 Flat washer X003839 MM17004000627
- +
0318 Flat washer X003840 MM17004000628
- +
0327 Flat washer X003848 MM17004000629
- +
0335 Flat washer X003854 MM17004000630
- +
0047 Flat washer X003821 MM17004000631
- +
0005 Flat washer X003820 MM17004000632
- +
0341 Foot pedal X003859 MM17004000321
- +
0344 Foot pedal long axis X003862 MM17004000327
- +
0340 Foot pedal plate X003858 MM17004000324
- +
0291 Four Pisition Switch rod X003824 MM17004000661
- +
0338 Joe block X003857 MM17004000643
- +
0345 Left foot pedal X003863 MM17004000971
- +
0298 Main Wires with plugs X003828 MM17004000110
- +
0334 Micro switch X003853 MM17004000741
- +
0321 Nut X003843 MM17004000432
- +
0308 nut X003832 MM17004000431
- +
0336 Nut X003855 MM17004000433
- +
0337 Nut X003856 MM17004000434
- +
0314 Pipe clamp X003837 MM17004000274
- +
0329 Protection X003849 MM17004000282
- +
0320 Right foot pedal X003842 MM17004000854
- +
0312 Screw X003835 MM17004000545
- +
0330 Screw X003850 MM17004000550
- +
0313 Screw X003836 MM17004000546
- +
0333 Screw X003852 MM17004000551
- +
0316 Screw X003838 MM17004000547
- +
0086 Screw X003823 MM17004000553
- +
0319 Screw X003841 MM17004000548
- +
0293 Screw X003825 MM17004000544
- +
0342 Screw X003860 MM17004000552
- +
0326 Screw X003847 MM17004000549
- +
0297 Slamping switch X003827 MM17004000589
- +
