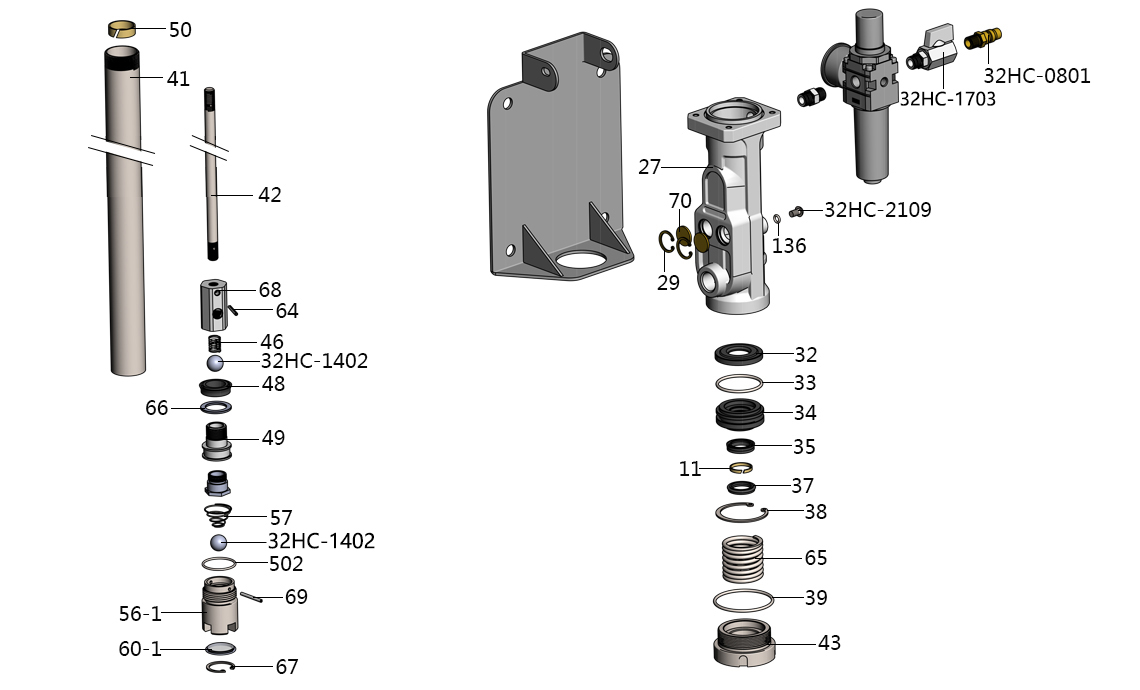

活塞杆总成

爆炸图编码	名称	原U8编码	SKU	数量
32HC-2109	内六角倒边螺钉	GZBLS-B-009-060102-0	FJ19010000011	- +
34	3:1油气分隔密封座	GZBLS-XP-0301-040008-0	JZ20400900232	- +
57	3:1锥形弹簧	GZBLS-XP-0301-016030-0	JZ11700300024	- +
41	3：1稀油泵泵管（镀彩锌)	GZBLS-XX-0301-042710-0	JZ20400900263	- +
42	3：1稀油泵连杆（镀彩锌)	GZBLS-XX-0301-042709-0	JZ20400900182	- +
27	3：1稀油泵主体（喷涂)	GZBLS-XX-0301-550003-0	JZ20400900307	- +
56-1	3：1一级进油单向阀		JZ20400900223	- +
32	3：1油气分隔密封座底盖	GZBLS-XZ-0301-040007-0	JZ20400900185	- +
502	O型密封圈	GZBLS-S-000-030200-1N	FJ29002000155	- +
39	O型密封圈	GZBLS-S-000-050265-1N	FJ29002000226	- +
136	O型密封圈	GZBLS-S-000-008180-1N	FJ29002000268	- +
33	O型密封圈	GZBLS-S-000-041355-1N	FJ29002000197	- +
66	O型密封圈	GZBLS-S-000-015200-1N	FJ29002000048	- +
48	Y型孔用密封圈	GZBLS-S-006-022800-1	FJ29009000003	- +
35	Y型轴用密封圈	GZBLS-S-006-020800-1	FJ29010000004	- +
43	变径管接头	GZBLS-XP-0301-000045-0	JZ11800800004	- +
11	导向带	GZBLS-S-043-003150-0	CF03003000005	- +
50	导向带	GZBLS-S-043-008200-0	CF03003000009	- +
32HC-1402	钢珠	GZBLS-S-041-000160-0	FJ04001000002	- +
60-1	过滤网		JZ20400900190	- +
64	开口销	GZBLS-B-070-030025-01	FJ26003000010	- +
69	开口销	GZBLS-B-070-030030-01	FJ26003000011	- +
29	孔用弹性挡圈	GZBLS-B-055-210001-0	FJ14002000003	- +
38	孔用弹性挡圈	GZBLS-B-055-480001-0	FJ14002000011	- +
67	孔用弹性挡圈		FJ14002000016	- +
32HC-1703	迷你球阀G1/4双内牙	GZBLS-S-030-020011-2	EQ02010000014	- +
65	密封座调节定位弹簧	GZBLS-XP-0301-000046-0	JZ11700300029	- +
32HC-0801	普通气嘴20PM外丝型20PM G1/4外丝	GZBLS-S-025-0420PM-1	EQ12001000014	- +
37	斯特封	GZBLS-S-003-020420-1	FJ29016000005	- +
68	提油单向阀阀套3:1	GZBLS-XP-0301-000034-0	JZ20400900243	- +
49	提油单向阀芯3:1	GZBLS-XP-0301-000035-0	JZ20400900245	- +
46	提油单向阀柱形弹簧	GZBLS-XP-0301-000033-0	JZ11700300030	- +
60	稀油泵底阀滤网总成M28×1.5	GZBLS-CW-0301-000053-0	JZ30500800124	- +
70	消声片	GZBLS-GP-5010-000035-6	EQ04003000003	- +
