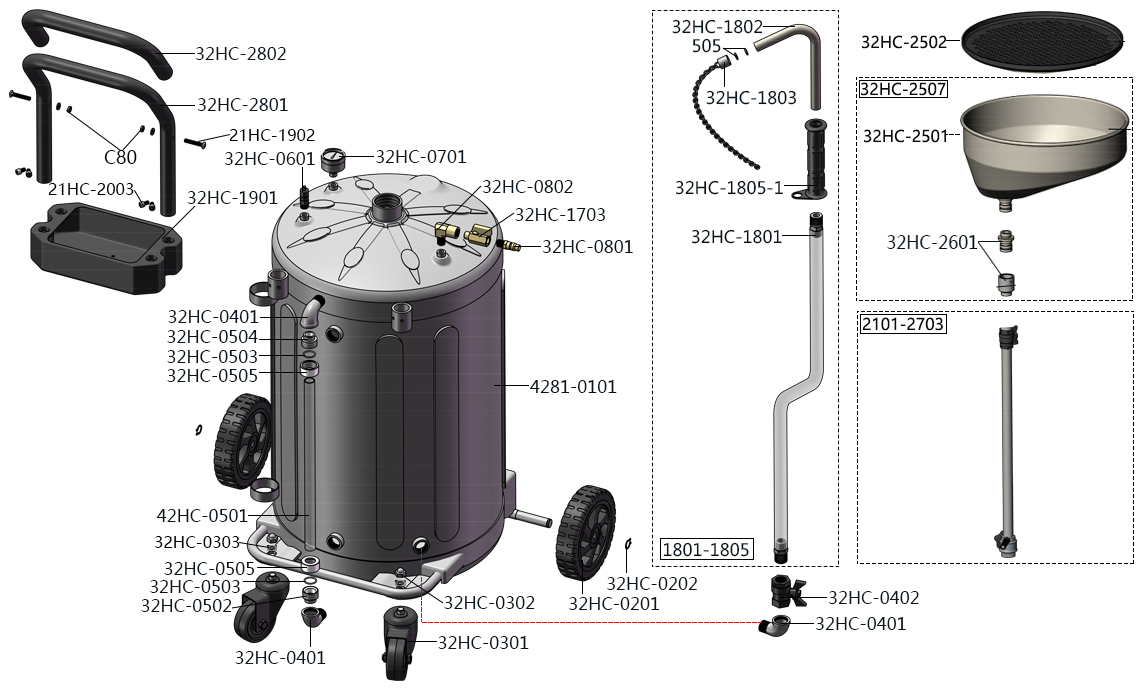

Picture Graph code Name U8 code SKU Price: Qty:
32HC-2507 oil tray GZBLS-CW-310-000004-0 JZ30500600209
- +
32HC-2601 connector GZBLS-HC-0040-010013-0 JZ20400700072
- +
32HC-2502 strainer GZBLS-HCX-3297-000015-0 JZ20400700199
- +
32HC-2501 oil tray JZ30500600772
- +
32HC-0402 butterfly valve GZBLS-S-030-040012-1 EQ02010000007
- +
1801-1805 C-oil drain hose with hook-32 GZBLS-CW-080-329700-3 JZ30500600208
- +
32HC-2802 draft tube sleeve GZBLS-HC-0030-480023-0 JZ12101000012
- +
32HC-0401 Elbow connector GZBLS-HCX-0020-040412-1 JZ20400700110
- +
32HC-0802 Elbow connector GZBLS-S-020-020022-1 EQ08002000007
- +
32HC-0505 fixing sleeve(nut) GZBLS-HC-0040-028023-0 JZ20400700231
- +
32HC-0502 fixing sleeve(screw) GZBLS-HC-0040-028025-0 JZ20400700121
- +
32HC-0504 fixing sleeve(screw) GZBLS-HC-0040-028024-0 JZ20400700120
- +
32HC-0303 Flat washer GZBLS-B-040-122401-1 FJ15006000017
- +
32HC-1805-1 Handle sleeve GZBLS-HC-0030-012016-0 FJ02001000006
- +
32HC-2801 handrail GZBLS-HCX-3285-000005-0 JZ20400700380
- +
21HC-2003 hex socket head cap screw GZBLS-B-011-060100-0 FJ22009000083
- +
32HC-0501 level pipe GZBLS-HCZ-0030-020380-0 JZ20400700395
- +
32HC-1703 mini ball valve GZBLS-S-030-020011-2 EQ02010000014
- +
C80 Nut GZBLS-B-004-060000-0,B-004-06000 FJ21011000023
- +
32HC-0302 Nut GZBLS-B-034-120002-0 FJ21009000003
- +
32HC-1802 oil drain hook GZBLS-HCX-3297-000009-0 JZ20400700384
- +

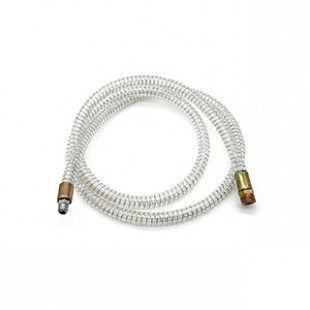

32HC-1801 oil hose GZBLS-HCZ-3297-000016 JZ30500600345
- +
32HC-0701 pressure gauge GZBLS-S-037-400252-0 EQ05003000008
- +
32HC-0801 Quick coupler GZBLS-S-025-0420PM-1 EQ12001000014
- +
32HC-0601 safe valve GZBLS-S-030-020102-5 EQ02001000007
- +
21HC-1902 screw GZBLS-B-009-060352-0 FJ19010000021
- +
505 seal ring GZBLS-S-000-020200-1W FJ29002000058
- +
32HC-0503 seal ring GZBLS-S-000-024240-1W FJ29002000085
- +
32HC-0202 Snap Ring GZBLS-B-055-130001-0 FJ14001000004
- +
32HC-0201 sterring wheel GZBLS-S-040-060010-3 FJ28002000003
- +
32HC-0301 sterring wheel GZBLS-S-040-040040-3 FJ28007000002
- +
32HC-1803 stopper GZBLS-HC-3297-215162-0 JZ20400700190
- +

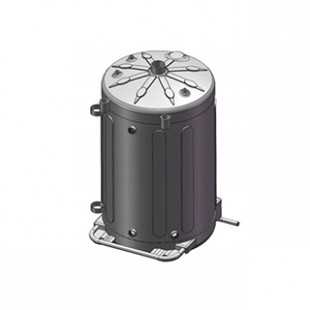

4281-0101 Tank GZBLS-HCX-4281-000001-0 JZ20400700331
- +
32HC-1901 tool box GZBLS-HC-0030-000017-0 JZ12000600009
- +
